Sharpening Part 28 – The Minuscule Burr

Do the difficult things while they are easy and do the great things while they are small.

Lao Tzu

A key milestone our Beloved Customers should aim for when sharpening a blade is the production of a “burr” at the edge when abrading the bevel (not the ura) using the first rough stone in the series. The formation of the burr indicates that the extreme edge of the bevel side of the blade has been abraded enough.

In this post in the Sharpening Japanese Tools Series, we will examine how to raise this burr and why it is important to do so, how to use the burr to test the condition of the cutting edge as you are sharpening, and how to transition from one stone to the next finest stone in the series

Raise a Burr

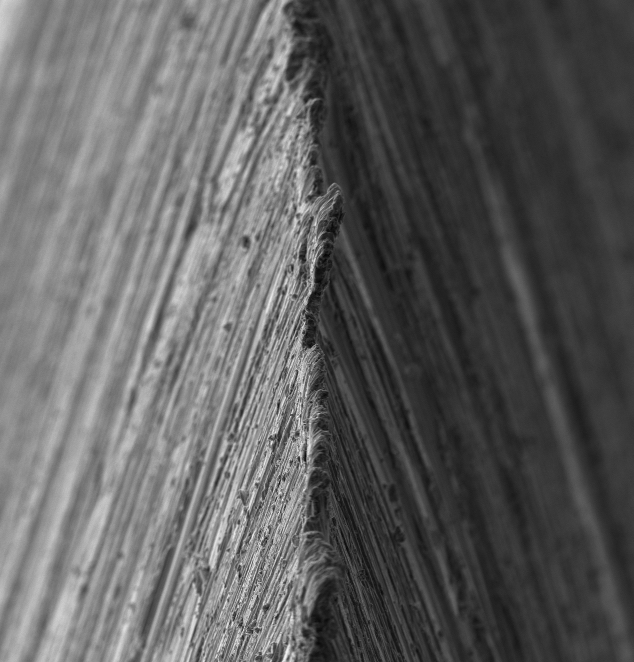

The steps in creating and then abrading away a burr. The size of the burr in step 2 is grossly exaggerated for clarity. Indeed, unless severe damage to the edge needs to be repaired, you should not normally be able to detect the burr by Mark 1 Eyeball alone.

Japanese plane and chisel blades tend to have harder steel at their cutting edges than Western chisel and planes, and consequently, their steel does not exhibit the plastic deformation necessary to readily produce large burrs, or “wires” as some people call them, when being sharpened. In fact, “burrs” on professional-grade Japanese chisel and plane blades may be difficult to detect.

The key point to remember is that a clean, uniform, smooth burr signals the elimination of all major defects, chips, and dents at the cutting edge. If there are a lot of deep defects to remove, the thickness of the metal at the edge that must be abraded is correspondingly greater, and the burr developed will tend to be correspondingly larger. But a large, loopy burr or wire is not desirable because it will tend to break off prematurely leaving a jagged, ragged edge that will actually set back the sharpening process.

You want to create a barely-detectable, tiny and clean burr as soon in the sharpening process as possible. My advice is to do it on the roughest stone, although you may not be able to test if it is clean until after a few strokes on the medium-grit stone (1000 grit).

As we discussed in a previous post in this series, the way to keep the size of the burr minimal and the blade’s bevel flat is to focus the pressure of abrasion as close to the extreme cutting edge as possible, but without overbalancing and gouging the stone and dulling the edge. This is the most essential skill in freehand sharpening.

Now that we have a burr, let’s look at how to test it next.

Testing the Burr

As you are working to produce the burr, you will need to quickly test its progress, but that can be difficult, if not impossible, to do by eye alone. To make this process easier and quicker, rub the pad of your thumb or finger over the ura’s edge, away from the cutting edge, thank you very much, when using your rough stones. Your fingerprint ridges will snag on the burr long before you can see it. If the edge is chipped or damaged, the burr will not be consistent but will be interrupted at each defect. There is nothing at all to be gained and much to lose by allowing the burr to become larger than absolutely necessary, so pay attention.

Once you have a small burr, you then need to test it for defects. If you run your fingernail along the burr’s length (the width of the blade), you will feel interruptions in the burr long before you can see them. Keep working the blade’s bevel on the rough stone until the burr is consistent across the full width of the blade, and free of dents and chips.

In the case where you need to remove serious damage to the cutting edge, you may want to use a loupe to ensure the defect has been transferred entirely to the burr and is not longer in the cutting edge.

If you are careful to focus the abrasive effect of the stones on the extreme cutting edge instead of the rear of the bevel, the burr created before moving onto the medium grit stones should be barely detectable. Once again, except in the case of removing large chips or blade damage, creating a big burr is not only a waste of time, stones and steel, but if the large burr is torn off during sharpening, it will leave behind a tragic amount of damage that must be repaired by once again abrading the edge and raising a new burr. Don’t start chasing that tail.

Best to create just enough of a burr to confirm that damage has been removed and then encourage it to evaporate.

Don’t forget to check the angle of the bevel with your hand-dandy bevel gauge. See the section on Pixie Predation Prevention & Pacification in Part 11 of this series.

After the burr is in good shape, then polish the bevel on the medium and then fine stones. The burr will be polished off without special effort.

Assuming the ura is already polished on your finest finishing stone, you shouldn’t need to touch the blade’s ura on any stone until the final finishing stone.

Transitioning From One Stone to the Next

Recall that the purpose of each stone used after the roughest stone in the series is simply to replace the deeper scratches left by the preceding stone with finer scratches. In fact, there is nothing to be gained and much to lose by moving onto a finer stone before all the scratches from the previous stone have been replaced. Therefore, it is important to check that all the scratches from the previous stone have been polished out before moving to the next. This is not always easy to confirm without magnification, so to make it easier and surer, I suggest you skew the blade’s bevel on the stone for the last 3 or 4 strokes to make new diagonal scratch marks at an angle different from those produced previously.

These skewed scratches will be at a different angle than those produced by the next stone, of course, and will be easy to differentiate from the new scratches with the nekid eye. When the next finest stone removes them entirely, you will know you have probably spent enough time on that stone, and can go to the next. But don’t forget to skew the blade again before going to the next stone.

Of course, there is no need to skew the blade on the final finishing stone.

Summary

We have discussed three important sharpening techniques in this article which you must master if you have not already:

  1. Raise a burr by abrading the blade’s bevel on your rough stones using your skillful technique;
  2. Test the burr for size and completeness using your fingertip ridges, and for defects using your fingernails. If the burr is incomplete or has detectable defects, continue to work the blade on the rough stones on the bevel side only until the burr is good.
  3. Skew the blade during the last 3~4 strokes on each stone (except the final finishing stone, of course) to create diagonal lines. When all those diagonal lines are polished off by the succeeding stone, you will know it is probably OK to move onto the next finest stone in the series.

You now have some powerful tools to use when sharpening your excellent tools, and none of them cost you a nickel. How’s that for value? (ツ)

Be forewarned, however, that if you use these techniques you may be forced to choose between a glamorous career as an international professional fingernail model or the quiet life of an expert woodworker. What to do what to do…..

In the next and final post in this series we will use all the aspects of the sharpening process discussed previously to sharpen a blade step-by-step. Be there or be square.

YMHOS

If you have questions or would like to learn more about our tools, please use the questions form located immediately below. Please share your insights and comments with everyone in the form located further below labeled “Leave a Reply.” We aren’t evil Google or incompetent facebook and so won’t sell, share, or profitably “misplace” your information.

Other Posts in the Sharpening Series

Sharpening Japanese Woodworking Tools Part 1

Sharpening Part 2 – The Journey

Sharpening Part 3 – Philosophy

Sharpening Part 4 – ‘Nando and the Sword Sharpener

Sharpening Part 5 – The Sharp Edge

Sharpening Part 6 – The Mystery of Steel

Sharpening Part 7 – The Alchemy of Hard Steel 鋼

Sharpening Part 8 – Soft Iron 地金

Sharpening Part 9 – Hard Steel & Soft Iron 鍛接

Sharpening Part 10 – The Ura 浦

Sharpening Part 11 – Supernatural Bevel Angles

Sharpening Part 12 – Skewampus Blades, Curved Cutting Edges, and Monkeyshines

Sharpening Part 13 – Nitty Gritty

Sharpening Part 14 – Natural Sharpening Stones

Sharpening Part 15 – The Most Important Stone

Sharpening Part 16 – Pixie Dust

Sharpening Part 17 – Gear

Sharpening Part 18 – The Nagura Stone

Sharpening Part 19 – Maintaining Sharpening Stones

Sharpening Part 20 – Flattening and Polishing the Ura

Sharpening Part 21 – The Bulging Bevel

Sharpening Part 22 – The Double-bevel Blues

Sharpening Part 23 – Stance & Grip

Sharpening Part 24 – Sharpening Direction

Sharpening Part 25 – Short Strokes

Sharpening Part 26 – The Taming of the Skew

Sharpening Part 27 – The Entire Face

Sharpening Part 28 – The Minuscule Burr

Sharpening Part 29 – An Example

2 thoughts on “Sharpening Part 28 – The Minuscule Burr

  1. Having never used a loupe for magnifying, how many times(x) magnification is necessary to see fine details on a chisel? Likely not needed but that’s never stopped me from staring obsessively at things.

    Like

    1. Jinters: I like the pen type because they are handy, don’t take up much room in the toolchest, and don’t need batteries. 25x works fine, but I prefer 50x. 100x is hard to hold steady. Peak is pretty common in Japan. https://www.peakoptics.com/index.php?main_page=product_info&cPath=14&products_id=16
      I don’t use it very often anymore, but it was useful for really understanding the scratches/polish left behind by stones, and the value of grit ratings.

      Like
