The Varieties of Japanese Chisels Part 13 – The Shinogi Usunomi 鎬薄鑿 Paring Chisel

“All times are good for those who know how to work and have the tools to do so.”

Carlos Slim

The shinogi usunomi is another variety of paring chisel in the tsukinomi family.

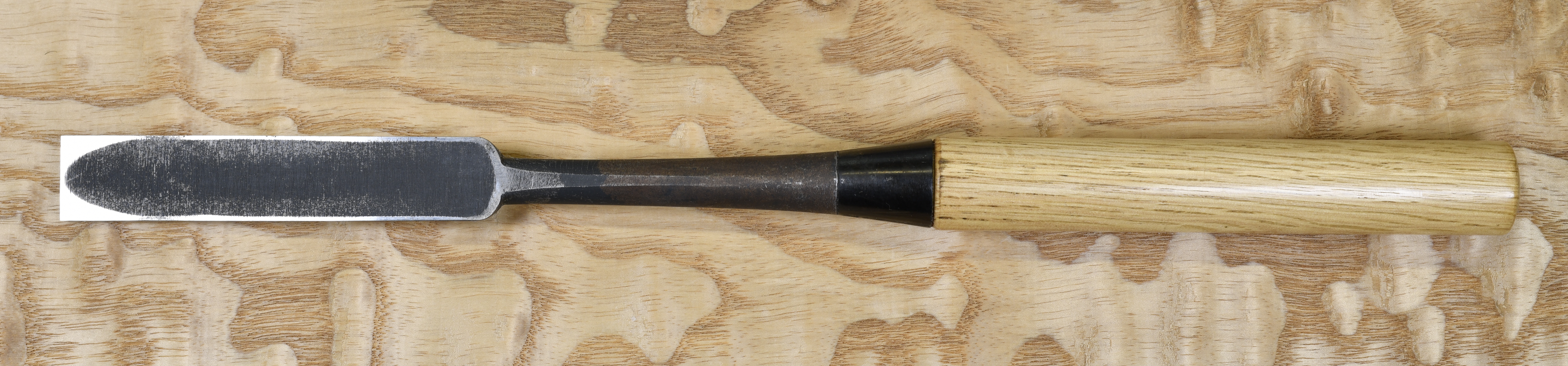

Kiyotada Shinogi usunomi

We examined the word ” shinogi” in a previous post.

It means ”ridge” as in the ridge of a mountain, or a building’s roof, or the back of some Japanese swords. Shinogi-style chisels have two wide bevels on their face that meet at the bkade’s centerline creating a ridge. Sometimes there is a narrow flat at the top of the ridge, depending on the blacksmith’s style and customer request.

If the atsunomi is the draught horse, the oiirenomis are the quarter horse, and the usunomi is the falcon of the chisel world ( the one in my slightly addled head, that is), then the shinogi usunomi is a Goshawk, severe in appearance, fierce, strong, fast, and skilled at maneuvering nimbly in tight situations.

Shinogi usunomi have these same two bevels and center ridge as the shinogi oiirenomi. The side edges tend to be thinner than standard usunomi, and with less material in the way, they are often just the ticket for paring into right corners. And because the ridge is higher than the standard usunomi is thick, they tend to be a bit more rigid.

And of course, since it is an usunomi (meaning “thin chisel”) it has a relatively longer and more slender neck and handle, and no crown.

A pox on anyone that would strike one of these beauties with a mallet or hammer.

One downside to this design is that the ridge down the face, which increases the overall thickness of this chisel, may make it difficult to pare down into skinny mortises. Another potential downside, but not one that bothers me, is that the ridge is not as comfortable to press on with your fingers when paring. I find this ridge gives my fingers a better sense of the blade’s precise location in my hand and in the cut. This is all personal preference that can only be evaluated through experience using both varieties of usunomi.

You may be able to tell from my choice of words that I am fond of shinogi usunomi. Indeed, I admit to prefering them. I like how they look. I like how they feel. I like sharpening them. I like how they cut. I like how the extra clearance on the side lets me see what I am paring. Subjective? Of course. And I admit they can’t do all jobs. The standard usunomi is probably a better general-use paring chisel.

The shinogi usunomi is a serious tool for serious work that looks good while doing it.
