Sharpening Part 28 – The Minuscule Burr

Do the difficult things while they are easy and do the great things while they are small.

Lao Tzu

A key milestone our Beloved Customers should aim for when sharpening a blade is the production of a “burr” at the edge when abrading the bevel (not the ura) using the first rough stone in the series. The formation of the burr indicates that the extreme edge of the bevel side of the blade has been abraded enough.

In this post in the Sharpening Japanese Tools Series, we will examine how to raise this burr and why it is important to do so, how to use the burr to test the condition of the cutting edge as you are sharpening, and how to transition from one stone to the next finest stone in the series

Raise a Burr

The steps in creating and then abrading away a burr. The size of the burr in step 2 is grossly exaggerated for clarity. Indeed, unless severe damage to the edge needs to be repaired, you should not normally be able to detect the burr by Mark 1 Eyeball alone.

Japanese plane and chisel blades tend to have harder steel at their cutting edges than Western chisel and planes, and consequently, their steel does not exhibit the plastic deformation necessary to readily produce large burrs, or “wires” as some people call them, when being sharpened. In fact, “burrs” on professional-grade Japanese chisel and plane blades may be difficult to detect.

The key point to remember is that a clean, uniform, smooth burr signals the elimination of all major defects, chips, and dents at the cutting edge. If there are a lot of deep defects to remove, the thickness of the metal at the edge that must be abraded is correspondingly greater, and the burr developed will tend to be correspondingly larger. But a large, loopy burr or wire is not desirable because it will tend to break off prematurely leaving a jagged, ragged edge that will actually set back the sharpening process.

You want to create a barely-detectable, tiny and clean burr as soon in the sharpening process as possible. My advice is to do it on the roughest stone, although you may not be able to test if it is clean until after a few strokes on the medium-grit stone (1000 grit).

As we discussed in a previous post in this series, the way to keep the size of the burr minimal and the blade’s bevel flat is to focus the pressure of abrasion as close to the extreme cutting edge as possible, but without overbalancing and gouging the stone and dulling the edge. This is the most essential skill in freehand sharpening.

Now that we have a burr, let’s look at how to test it next.

Testing the Burr

As you are working to produce the burr, you will need to quickly test its progress, but that can be difficult, if not impossible, to do by eye alone. To make this process easier and quicker, rub the pad of your thumb or finger over the ura’s edge, away from the cutting edge, thank you very much, when using your rough stones. Your fingerprint ridges will snag on the burr long before you can see it. If the edge is chipped or damaged, the burr will not be consistent but will be interrupted at each defect. There is nothing at all to be gained and much to lose by allowing the burr to become larger than absolutely necessary, so pay attention.

Once you have a small burr, you then need to test it for defects. If you run your fingernail along the burr’s length (the width of the blade), you will feel interruptions in the burr long before you can see them. Keep working the blade’s bevel on the rough stone until the burr is consistent across the full width of the blade, and free of dents and chips.

In the case where you need to remove serious damage to the cutting edge, you may want to use a loupe to ensure the defect has been transferred entirely to the burr and is not longer in the cutting edge.

If you are careful to focus the abrasive effect of the stones on the extreme cutting edge instead of the rear of the bevel, the burr created before moving onto the medium grit stones should be barely detectable. Once again, except in the case of removing large chips or blade damage, creating a big burr is not only a waste of time, stones and steel, but if the large burr is torn off during sharpening, it will leave behind a tragic amount of damage that must be repaired by once again abrading the edge and raising a new burr. Don’t start chasing that tail.

Best to create just enough of a burr to confirm that damage has been removed and then encourage it to evaporate.

Don’t forget to check the angle of the bevel with your hand-dandy bevel gauge. See the section on Pixie Predation Prevention & Pacification in Part 11 of this series.

After the burr is in good shape, then polish the bevel on the medium and then fine stones. The burr will be polished off without special effort.

Assuming the ura is already polished on your finest finishing stone, you shouldn’t need to touch the blade’s ura on any stone until the final finishing stone.

Transitioning From One Stone to the Next

Recall that the purpose of each stone used after the roughest stone in the series is simply to replace the deeper scratches left by the preceding stone with finer scratches. In fact, there is nothing to be gained and much to lose by moving onto a finer stone before all the scratches from the previous stone have been replaced. Therefore, it is important to check that all the scratches from the previous stone have been polished out before moving to the next. This is not always easy to confirm without magnification, so to make it easier and surer, I suggest you skew the blade’s bevel on the stone for the last 3 or 4 strokes to make new diagonal scratch marks at an angle different from those produced previously.

These skewed scratches will be at a different angle than those produced by the next stone, of course, and will be easy to differentiate from the new scratches with the nekid eye. When the next finest stone removes them entirely, you will know you have probably spent enough time on that stone, and can go to the next. But don’t forget to skew the blade again before going to the next stone.

Of course, there is no need to skew the blade on the final finishing stone.

Summary

We have discussed three important sharpening techniques in this article which you must master if you have not already:

  1. Raise a burr by abrading the blade’s bevel on your rough stones using your skillful technique;
  2. Test the burr for size and completeness using your fingertip ridges, and for defects using your fingernails. If the burr is incomplete or has detectable defects, continue to work the blade on the rough stones on the bevel side only until the burr is good.
  3. Skew the blade during the last 3~4 strokes on each stone (except the final finishing stone, of course) to create diagonal lines. When all those diagonal lines are polished off by the succeeding stone, you will know it is probably OK to move onto the next finest stone in the series.

You now have some powerful tools to use when sharpening your excellent tools, and none of them cost you a nickel. How’s that for value? (ツ)

Be forewarned, however, that if you use these techniques you may be forced to choose between a glamorous career as an international professional fingernail model or the quiet life of an expert woodworker. What to do what to do…..

In the next and final post in this series we will use all the aspects of the sharpening process discussed previously to sharpen a blade step-by-step. Be there or be square.

YMHOS

If you have questions or would like to learn more about our tools, please use the questions form located immediately below. Please share your insights and comments with everyone in the form located further below labeled “Leave a Reply.” We aren’t evil Google or incompetent facebook and so won’t sell, share, or profitably “misplace” your information.

Other Posts in the Sharpening Series

Sharpening Japanese Woodworking Tools Part 1

Sharpening Part 2 – The Journey

Sharpening Part 3 – Philosophy

Sharpening Part 4 – ‘Nando and the Sword Sharpener

Sharpening Part 5 – The Sharp Edge

Sharpening Part 6 – The Mystery of Steel

Sharpening Part 7 – The Alchemy of Hard Steel 鋼

Sharpening Part 8 – Soft Iron 地金

Sharpening Part 9 – Hard Steel & Soft Iron 鍛接

Sharpening Part 10 – The Ura 浦

Sharpening Part 11 – Supernatural Bevel Angles

Sharpening Part 12 – Skewampus Blades, Curved Cutting Edges, and Monkeyshines

Sharpening Part 13 – Nitty Gritty

Sharpening Part 14 – Natural Sharpening Stones

Sharpening Part 15 – The Most Important Stone

Sharpening Part 16 – Pixie Dust

Sharpening Part 17 – Gear

Sharpening Part 18 – The Nagura Stone

Sharpening Part 19 – Maintaining Sharpening Stones

Sharpening Part 20 – Flattening and Polishing the Ura

Sharpening Part 21 – The Bulging Bevel

Sharpening Part 22 – The Double-bevel Blues

Sharpening Part 23 – Stance & Grip

Sharpening Part 24 – Sharpening Direction

Sharpening Part 25 – Short Strokes

Sharpening Part 26 – The Taming of the Skew

Sharpening Part 27 – The Entire Face

Sharpening Part 28 – The Minuscule Burr

Sharpening Part 29 – An Example

Sharpening Part 27 – The Entire Face

A beautiful face: Oohirayama Lotus stone

If a dog will not come to you after having looked you in the face, you should go home and examine your conscience.

Woodrow Wilson

The subject of how to use the face of your sharpening stone is so basic and seems so unimportant that few give it the attention it warrants. But it is not trivial: it deserves its own post because it can truly make a big difference in the time and money you spend sharpening.

Money Down the Drain

Instead of focusing his attention on the blade alone, a wise man will make a conscious effort to use the entire face of his sharpening stone from edge to edge, end to end, and corner to corner instead of digging an oval swamp in the center of his stone’s face.

This habit will help to keep a stone’s faces flatter over more strokes longer, saving time truing the stone, and extending its life thereby saving money.

Remember that you paid money for the stone, the entire stone, not just the hollowed-out oval area in the center most people create when carelessly sharpening. How much of a stone do most people throw away? Idunno, 20%? If you paid $100 dollars for the stone, that means $20 was turned into mud and washed away without providing any benefit to you at all. And don’t forget that you had to spend time cutting down those high spots to keep the stone’s face flat. That makes it more than a $20 loss if you count your time worth anything, which you should.

Why not use the sides and ends of the stone too?

Developing Good Habits

When developing these intelligent work habits, use a carpenter’s pencil to cross-hatch the stone’s surface to help you keep track of the areas you have not yet touched. Industrial diamonds are made from graphite, it’s true, but pencil lead is still softer than the finest sharpening stone and won’t affect the sharpening process one way or another.

Also, before and while sharpening, frequently use a thin stainless steel ruler to check the stone’s face lengthwise and crosswise at various locations, and of course on the diagonals to monitor wear. Don’t guess, lazy bones, examine. Between ruler and pencil you may discover you have developed less-than-efficient sharpening habits. With some thought you will also figure out how to change those habits so your sharpening efforts will be quicker and more cost-effective.

Before long, you will be able to detect uneven wear and warpage fairly reliably without using either tool as much, so stick with it until you do.

Hang Ten

One conundrum you have probably already discovered is that it is impractical to use the extreme right and left sides and both ends of the stone’s face to sharpen a blade. Or is it? Here is wisdom: Teach yourself how to sharpen with one corner of the blade hanging off the stone part of the time, alternating between right and left corners, of course. Strange as it may seem this technique is effective at not only keeping your sharpening stone flatter, but for keeping the cutting edges of your blades straighter. If this doesn’t make sense to you, think about it real hard. Then give it a try and you will see what I mean.

And since you are taking short strokes anyway, why not work the blade crosswise at the ends of the stone? A lot of expensive stone going to waste there.

I hate to sound like a broken record, but you will find that making short strokes will make it much easier to use the entire face of the stone.

If you feel this post needlessly states the obvious, or is “verbose,” allow me to remind our Gentle Readers once again that the purpose of this blog is not to provide entertainment, sell stuff, troll for clicks or snag subscribers but to help our Beloved Customers develop good work habits through education. Some of them are newbies, and others are old hands, but if I were to write only for the professionals then I would be neglecting the newbies, so if you know this stuff already please congratulate yourself and celebrate your good fortune by buying a new carpenter’s pencil.

Related image

YMHOS

If you have questions or would like to learn more about our tools, please use the questions form located immediately below. Please share your insights and comments with everyone in the form located further below labeled “Leave a Reply.” We aren’t evil Google or incompetent facebook and so won’t sell, share, or profitably “misplace” your information.

Other Posts in the Sharpening Series

Sharpening Japanese Woodworking Tools Part 1

Sharpening Part 2 – The Journey

Sharpening Part 3 – Philosophy

Sharpening Part 4 – ‘Nando and the Sword Sharpener

Sharpening Part 5 – The Sharp Edge

Sharpening Part 6 – The Mystery of Steel

Sharpening Part 7 – The Alchemy of Hard Steel 鋼

Sharpening Part 8 – Soft Iron 地金

Sharpening Part 9 – Hard Steel & Soft Iron 鍛接

Sharpening Part 10 – The Ura 浦

Sharpening Part 11 – Supernatural Bevel Angles

Sharpening Part 12 – Skewampus Blades, Curved Cutting Edges, and Monkeyshines

Sharpening Part 13 – Nitty Gritty

Sharpening Part 14 – Natural Sharpening Stones

Sharpening Part 15 – The Most Important Stone

Sharpening Part 16 – Pixie Dust

Sharpening Part 17 – Gear

Sharpening Part 18 – The Nagura Stone

Sharpening Part 19 – Maintaining Sharpening Stones

Sharpening Part 20 – Flattening and Polishing the Ura

Sharpening Part 21 – The Bulging Bevel

Sharpening Part 22 – The Double-bevel Blues

Sharpening Part 23 – Stance & Grip

Sharpening Part 24 – Sharpening Direction

Sharpening Part 25 – Short Strokes

Sharpening Part 26 – The Taming of the Skew

Sharpening Part 27 – The Entire Face

Sharpening Part 28 – The Minuscule Burr

Sharpening Part 29 – An Example

Sharpening Part 22 – The Double-Bevel Blues

The fool doth think he is wise, but the wise man knows himself to be a fool.

William Shakespeare, As You Like It
It is well with me only when I have a chisel in my hand – Michelangelo Buonarroti 1475-1564

In the previous post in this series on sharpening Japanese tools, we looked at philosophical points such as making tools a long-term investment, as well as the upsides, downsides and causes of the bulging bevel. In this post, I would like to touch on a subject that will make thoughtful people think and befuddled folks lucid: The Double Bevel.

The Double-Bevel

Some people advocate creating double-bevels (primary and secondary) bevels, or what is sometimes called “micro-bevels” on plane and chisel blades. Multiple bevels have three useful applications in my opinion:

  1. The first useful application is to repair a tool’s blade in the field when there is not enough time to do a proper sharpening job. If a blade dulls or chips in the course of a job, we can quickly add a secondary bevel at a steeper angle to the blade’s primary bevel in a few seconds and get right back to work, but there will be a price to pay later over many sharpening sessions to restore the proper bevel, so it is only a temporary, not a long-term solution;
  2. The second application is to quickly adjust a plane blade’s angle to reduce tearout immediately when proper sharpening is not possible. Once again, a lot of remedial sharpening becomes necessary afterwards. This application is usually restricted to the primary bevel, but we will look at a more esoteric and risky application below.
  3. The third application is to efficiently restore a blade’s bevel to the correct angle in the case where pixies or our inattention has made the blade angle too shallow.

Case 3 above often goes like this: A blade that cuts well suddenly starts dulling quickly, maybe even chipping. Whiskey tango foxtrot!?! When this happens, our Beloved Customers, being of exceptionally high intelligence, use the bevel angle gauge described in Part 11 of this series to check the bevel angle. They may discover the bevel angle has become too shallow for the wood it is being asked to cut.

Image result for lie-nielsen honing jig photo

We could increase the bevel angle by welding metal to the bevel and regrinding it, but such barbaric behavior would ruin the blade, so the most expedient way to correct the bevel is to add a steeper secondary bevel at the desired angle. We can grind this new bevel by hand, or use a honing jig like the Lie-Nielson widget. I find I can apply more downward pressure using this jig to get the job done sooner and more precisely.

Honing jigs are undeniably useful, but they often become an impediment to learning professional sharpening skills, and they are more time-consuming to use than freehand sharpening. Jigs can certainly make the sneaky snake of multiple bevels workable, but please don’t ignore the inescapable fact that if one uses a jig properly, over multiple sharpening sessions the result will be… let me think about it…. wait a second while I make a little sketch here…. oh yea, a flat bevel. Hmmm….

Hey, I’ve got an idea. When performing routine sharpening (not the 3 cases listed above), instead of taking shortcuts and adding micro-bevels which turn into secondary bevels and maybe even bulging bevels, why not start with a flat bevel and keep it flat? And then just maybe we could take advantage of the natural indexing properties of that flat bevel to sharpen freehand and save a lot of time NOT polishing skinny secondary bevels or fat bulging bevels? You know what, it just might work!

A honing jig is very helpful for making big angle corrections. I own several, but the Lie-Nielson model is my favorite: I use it every third blue moon. If you decide to use one, however, reserve it for emergency or drastic measures. Don’t let it become training wheels, kiddies.

The Nano-bevel

In this and previous posts we discussed bulging bevels, which are convex bevels on plane or chisel blades; secondary bevels and double bevels, which are additional bevels; and micro-bevels, which are a tiny secondary bevel. But there is another type of secondary bevel a clever Beloved Customer called a “nano-bevel.” I like this term and so will use it, but I caution you that, like all secondary bevels, you should employ this bevel judiciously.

We will go into freehand sharpening techniques in greater detail in future posts, but to avoid confusion when discussing the nano-bevel, we need to touch on some of those techniques now.

You may have noticed that, when sharpening freehand on every stone but the finish stone, most, but not all people do a better job by applying downward pressure on the blade only on either the push stroke away from their body or the pull stroke back towards their body, but not in both directions. This is because placing downward pressure in both directions tends to make the blade rock resulting in a less-than-flat bevel, or Saints preserve us, the demonic bulging bevel. As you can imagine, if this rocking motion gets out of hand on the rougher stones the bevel angle can get out of control quickly.

However, on the finish stone, it is most efficient to apply light downward pressure in both directions. The advantage is that a teeny tiny bit of unintentional rocking helps to ensure the last few microns of the blade’s cutting edge are thoroughly polished. And because the abrasive power of a finish stone is so small, there is no danger the bevel will become rounded, at least if you don’t get carried away. From the wood-shaving’s eye view, this creates a tiny bevel at the last few microns of the cutting edge. This is one example of a “nano-bevel.” Stropping produces the same result on a larger scale. There is also another type of nano-bevel for emergency use.

When using a finish plane on wood with twisty grain you have no doubt experienced frustrating tearout. The usual litany of solutions is to reduce the blade’s projection for finer depth of cut, skew the plane, oil and adjust the chipbreaker, resharpen the blade, adjust the plane’s mouth, or even slightly dampen the wood with a planing fluid such as water, whiskey, or unicorn wee wee. All these methods can help.

On the subject of planing fluid, water works well but dries slowly and can have problematic secondary effects. And unicorn products are dreadfully expensive nowadays, even on Amazon, so I prefer a smooth, inexpensive, industrial-grade busthead. Please ask Ken Hatch for a demonstration and recommendations for a good planing fluid next time he invites you over to his house for his world-famous tacos.

Please note that I don’t drink any planing fluid other than water. Of course unicorn wee wee is more addictive than OxyContin and drives mortals quite mad. And alcohol is yeast pee pee and deadly, but I prefer whiskey for a number of reasons. First, whiskey has a good water/alcohol ratio that wets the wood about the right amount of time and then evaporates cleanly. Too wet and it penetrates too deeply. Too dry and it evaporates too quickly. Isopropyl alcohol works fine too but it is considered a pharmaceutical in Japan and so is very expensive. As with other alcohol products not intended for internal consumption, it contains poisons added at the demand of greedy governments for the sole purpose of maximizing tax revenues. I don’t need those poisons touching my tools or my skin. Whiskey doesn’t contain poisons (other than alcohol, of course), it’s cheaper and smells better.

Another classic solution to reduce tearout of course is to use a plane with a steeper blade bedding angle, but what to do if you don’t have a high-angle plane handy? A traditional, jobsite-expedient solution used by Japanese woodworkers is to create a nano-bevel on the ura side of the blade. This is accomplished during sharpening while polishing the ura on the finishing stone by lifting the head of the blade just a itsy bitsy teeny weeny nat’s nosehair thickness during the final stroke, pulling the blade towards you, of course, creating a “nano-bevel” on the last few microns of the cutting edge at the ura, effectively changing the approach angle of the blade.

Be forewarned that this is only for emergency use, and that if you are careless, or use it too often, the nano-bevel will become a microbevel, your blade will be damaged, efficient sharpening will become impossible, the chipbreaker will cease to function, and the gods of handsaws may curse you so all your hair will fall out and your dog will barf whenever it sees you! Or is it your dog’s hair will fall out and you will barf? I forget.

Now where did I set down that jar of planing fluid….?

Conclusion

A wise man will seek to avoid shortcuts that save a bit of time short-term only to waste more of his time and money long-term. If you simply make the effort to train yourself in basic sharpening skills, pay attention, and keep the bevel flat, time, steel, and stone-wasting monkeyshines such as double bevels will be unnecessary.

We have talked about the cutting edge’s proper shape. Beginning with the next post in this series, we will examine how to use sharpening stones to make it that way.

YMHOS

Well Dude, I’m done sharpening using my most excellent honing jig for now and am off to the beach on my chick magnet! Don’t wait up, Mom.

Sharpening Japanese Woodworking Tools Part 1

Sharpening Part 2 – The Journey

Sharpening Part 3 – Philosophy

Sharpening Part 4 – ‘Nando and the Sword Sharpener

Sharpening Part 5 – The Sharp Edge

Sharpening Part 6 – The Mystery of Steel

Sharpening Part 7 – The Alchemy of Hard Steel 鋼

Sharpening Part 8 – Soft Iron 地金

Sharpening Part 9 – Hard Steel & Soft Iron 鍛接

Sharpening Part 10 – The Ura 浦

Sharpening Part 11 – Supernatural Bevel Angles

Sharpening Part 12 – Skewampus Blades, Curved Cutting Edges, and Monkeyshines

Sharpening Part 13 – Nitty Gritty

Sharpening Part 14 – Natural Sharpening Stones

Sharpening Part 15 – The Most Important Stone

Sharpening Part 16 – Pixie Dust

Sharpening Part 17 – Gear

Sharpening Part 18 – The Nagura Stone

Sharpening Part 19 – Maintaining Sharpening Stones

Sharpening Part 20 – Flattening and Polishing the Ura

Sharpening Part 21 – The Bulging Bevel

Sharpening Part 22 – The Double-bevel Blues

Sharpening Part 23 – Stance & Grip

Sharpening Part 24 – Sharpening Direction

Sharpening Part 25 – Short Strokes

Sharpening Part 26 – The Taming of the Skew

Sharpening Part 27 – The Entire Face

Sharpening Part 28 – The Minuscule Burr

Sharpening Part 29 – An Example

If you have questions or would like to learn more about our tools, please use the questions form located immediately below. Please share your insights and comments with everyone in the form located further below labeled “Leave a Reply.” We aren’t evil Google or incompetent facebook and so won’t sell, share, or profitably “misplace” your information.

Sharpening Part 21 – The Bulging Bevel

This is what a flat bevel looks like. So sweet.

For everybody in their busy lives, you need to invest in sharpening your tools, and you need to invest in longevity.

Ryan Holmes

In the previous post in this series about sharpening tools we looked at why and how to true the ura, the hollow-ground area on Japanese chisel and plane blades. This post will focus on the opposite side of the wedge that is a cutting edge: the bevel. This discussion is relevant to all plane and chisel blades, not just Japanese tools.

Preface

Before we dive in, I need to clarify something.

Some of our Gentle Readers have been blessed with the opportunity to learn about tools from accomplished Japanese craftsmen, as was I, or have figured them out on their own. If you find this or other posts boring, please remember this blog’s primary purpose is to provide instruction to our Beloved Customers who have not had similar opportunities.

These Beloved Customers are located in many countries and range in experience from newbies to professional woodworkers, so I try to include both advanced information for the professionals, and detailed explanations so newbies can keep up. Consequently, these articles are sometimes long and wordy. I humbly request your kind indulgence on behalf of those who may benefit.

Investing in Longevity

The quote above by Mr Holmes is applicable to the all the principles of sharpening I have described in this series of posts so far. He is a computer dude, not a contractor, joiner or furniture maker, but it is no coincidence he chose to use handtool terminology: it is encoded in human DNA.

His first point is a self-evident admonition, but what about this “investing in longevity” stuff? By definition, an investment is an expenditure of time, resources and/or effort intended to produce a return greater in value than the expenditure. Then how do we go about investing in the longevity of our chisels and planes, and what return should we expect?

While simply grinding sharp edges on our tools helps with making things from wood, I don’t see it as an investment in tools. Rather, if we train ourselves in professional sharpening techniques, and use those techniques to maintain our tools so they function more efficiently and last longer, we can hope to obtain a real-world return we can quantify financially. The investment I encourage you to make is not in things, therefore, but in your own skills.

The Pros and Cons of the Bulging Bevel

The “bulging bevel,” as I call it, is a deformation too frequently seen in plane, chisel and knife blades. It is simply a cutting edge bevel that is protruding and convex instead of flat. In most cases a bulging bevel can make it difficult to properly sharpen a blade adequately, so it deserves our attention. Most bulging bevels are born unintentionally and are harmful, but some are hatched with a purpose in mind. Let’s examine the pros and cons, and throw in some scientific results just for fun.

The geometry of the bulging bevel is clearly superior in a few applications such as carving chisels and knives used in a gouging, scooping motion where a rounded bevel provides better control. Another is chisels used for cutting large and deep mortises where a rounded bevel helps pop out waste easier. Only timber framers cut these kind of mortises, however, and most of them use machines to at least rough out the mortises.

Hidari no Ichihiro 42mm Oiirenomi. Nothing obese about this sweetheart.

Our Beloved Customers are, without exception, extremely intelligent people, so right now some of you are no doubt saying to yourself: “Self,” (that’s what they call themselves when they silently cogitate profound matters) does a rotund bevel make my blades sharper or duller?” Let us consider some scientific results.

When I was a grad student in Japan, a fellow student wrote his thesis on the efficacy in plane blades of the bulging bevel versus the flat bevel. He developed experiments, fabricated testing apparatus, and used scientific methodology and microscopic photography yielding indisputable results. We repeated some of his experiments, discussed his research, and pored over photographs and fondled shavings late into the evenings at his lab in Building 11 at University of Tokyo Hongo campus as I drank coke and he drank sake. I’m not sure he made it home some evenings.

The conclusion he reached was that, from the viewpoint of the wood, and based on the classic sharpness test of cutting rag typing paper, there is no difference in the cutting performance between flat and bulging bevels, so long as two conditions are met: (1) Both types are sharpened to the same bevel angle and same degree of sharpness; and (2) The bulge is not so large as to interfere with the cut. The “same degree of sharpness” condition in proviso 1 is critical to this discussion.

Let’s examine the cutting edge closely. It’s effective scope is only the last few microns (μ) or so of the blade’s width at the extreme edge. 1μ=one millionth of a meter. A human hair is 90μ in diameter. We need to precisely repair and polish this narrow strip of steel using our sharpening stones, but remember that working anything beyond this strip contributes nothing to making the blade sharp.

Here’s an important point we can learn from a careful examination: Given the same number of strokes to the same blade on the same stones over the same amount of time, it is difficult to make a bulging bevel as sharp as a flat bevel, unless one spends the time to use a sharpening machine and jigs as my grad school friend did in his research room.

But the most important point, and one I want you to grasp with both hands and feet and all your teeth is that the time expended and amount of stone consumed when sharpening by hand to a set level of sharpness at the last critical microns of a bulging bevel’s cutting edge is huge compared to a flat bevel. Sharpening using machines and/or honing jigs takes even longer.

In addition to time and cost, another factor we need to consider is certainty, because if we are going to invest the time and stones to sharpen a tool, we need to be sure it will consistently achieve the same level of sharpness every time. Unfortunately, the sharpness of the bulging bevel is uncertain because, instead of guiding the blade to ensure consistent contact between steel and stone at the critical location on the cutting edge, the shape of the bulging bevel causes a significant number of strokes to be wasted on polishing a mound of metal that does nothing to make the blade sharper, but is simply in the way. Not convinced?

Consider the undeniable fact that, despite your best efforts, this irrelevant lump causes the blade to rock around on the stone’s surface like a boat over ocean swells, with the result that, given a fixed number of strokes, a high percentage of those strokes end up polishing the bulge instead of the cutting edge. This is important because, once again, the last micron of the blade is the only part that actually does any cutting, not the bulge.

Please don’t misunderstand. I’m not saying that you can’t create a fiendishly sharp edge on a blade with a bulging bevel. I’m also not saying that, within reasonable parameters, a convex bevel cuts less efficiently or dulls quicker than the same blade with a flat bevel. It absolutely doesn’t, as my colleague’s research showed. Allow me to restate and summarize the facts so there is no confusion.

  1. It takes longer to create a given level of sharpness at the extreme cutting edge of a bulging bevel than a flat bevel, all else equal;
  2. It consumes more sharpening stone to achieve a given level of sharpness at the extreme cutting edge of a bulging bevel compared to a flat bevel, all else equal; and
  3. There is greater uncertainty about the actual degree of sharpness achieved at the blade’s extreme cutting edge when sharpening a bulging bevel by hand compared to a flat bevel, all else equal.

If you doubt these statements, you must find the truth yourself. Buy or borrow a quality loupe or microscope with enough magnification to detect the scratches left by your usual finishing stone. Start with a dull blade with a truly flat bevel, sharpen it freehand using a set number of strokes, and observe the scratches at the last few microns of the cutting edge with your microscope. Then test the blade’s sharpness with your skin or fingernail. Next, repeat this test with a dull blade with a rounded bevel using the exact same sharpening tools and procedures and the same number of strokes. Once again, observe the scratches and test the sharpness. My grad school friend and I performed this side-by-side experiment at the University of Tokyo several times, with consistent results. Actually, it was a bet and I won. He had to buy the drinks and snacks for a month.

The Causes of Bevel Obesity

Besides pernicious pixies, the most common cause of bevel bulge is simple carelessness, which you can take steps to avoid once you realize the causes.

It is human tendency to try to stabilize the blade’s bevel on the stone while sharpening by applying more pressure on the rear half of the bevel, resulting in the rear half of the bevel (which is all soft jigane in the case of plane blades, and mostly soft jigane in the case of chisels) being abraded quicker than the front half (which contains the harder steel lamination), causing the bevel angle to gradually decrease or even become rounded. Even the best craftsmen make this mistake sometimes.

To avoid this tendency, train yourself to focus pressure on the front half of the bevel closest to the cutting edge. At first, you may overbalance and dig the cutting edge into the stone a few times, but with practice and attention, it will become second nature. It is almost a meditative process. Every professional woodworker worth his salt must learn this skill.

There is nothing wrong with making mistakes when learning a muscle memory skill like freehand sharpening, but too many people can’t be bothered to learn, and then become frustrated when their skills don’t improve immediately. In the end, they become defensive, and twist themselves into knots defending their inadequate techniques. Patience, grasshopper.

BTW, don’t forget to use your handy dandy brass bevel gauge to both check the bevel angle while sharpening and to keep those piratical pixies away.

Hidari no Ichihiro 30mm Atsunomi. What ignorant savage would grind multiple bevels on this?

Another cause of the tumescent bevel is the use of secondary bevels or micro-bevels. We’ll look at these aberrations in the next post in this series.

To make multiple bevels work one almost must use a sharpening or honing jig of some sort. Many allow sharpening jigs to become a substitute for real sharpening skills they didn’t bother to learn. Such jigs can become, in effect, training wheels those who rely on them never grow out of. So sad.

Conclusion

I encourage you to “invest in longevity” with regards to your tools in three ways:

  1. First setup your planes and chisels properly so they will provide you with long, reliable and efficient service. Setting up chisels improves not only their longevity but in many case their performance too, strange though it may seem. I will post articles about setting up and maintaining Japanese planes in the future.
  2. Second, true the ura of your plane and chisel blades efficiently without reducing their useful lifespan needlessly, as described in previous posts; and
  3. Third, invest in yourself by developing and honing the hand skills necessary to sharpen your blades quickly and efficiently while wasting only the absolute minimum of valuable time, steel and stone.
Image result for image of mandalorian helmet

Please master the ancient and bedrock-basic skill of freehand sharpening. All it takes is an understanding of correct principles, followed by concentration and practice; The rest will follow. I promise. “This is the way.”

We will look at other causes of bevel obesity in the next post in this series.

YMHOS

Links to Other Posts in the “Sharpening” Series

Sharpening Japanese Woodworking Tools Part 1

Sharpening Part 2 – The Journey

Sharpening Part 3 – Philosophy

Sharpening Part 4 – ‘Nando and the Sword Sharpener

Sharpening Part 5 – The Sharp Edge

Sharpening Part 6 – The Mystery of Steel

Sharpening Part 7 – The Alchemy of Hard Steel 鋼

Sharpening Part 8 – Soft Iron 地金

Sharpening Part 9 – Hard Steel & Soft Iron 鍛接

Sharpening Part 10 – The Ura 浦

Sharpening Part 11 – Supernatural Bevel Angles

Sharpening Part 12 – Skewampus Blades, Curved Cutting Edges, and Monkeyshines

Sharpening Part 13 – Nitty Gritty

Sharpening Part 14 – Natural Sharpening Stones

Sharpening Part 15 – The Most Important Stone

Sharpening Part 16 – Pixie Dust

Sharpening Part 17 – Gear

Sharpening Part 18 – The Nagura Stone

Sharpening Part 19 – Maintaining Sharpening Stones

Sharpening Part 20 – Flattening and Polishing the Ura

Sharpening Part 21 – The Bulging Bevel

Sharpening Part 22 – The Double-bevel Blues

Sharpening Part 23 – Stance & Grip

Sharpening Part 24 – Sharpening Direction

Sharpening Part 25 – Short Strokes

Sharpening Part 26 – The Taming of the Skew

Sharpening Part 27 – The Entire Face

Sharpening Part 28 – The Minuscule Burr

Sharpening Part 29 – An Example

If you have questions or would like to learn more about our tools, please use the questions form located immediately below. Please share your insights and comments with everyone in the form located further below labeled “Leave a Reply.” We aren’t evil Google or incompetent facebook and so won’t sell, share, or profitably “misplace” your information.

Sharpening Part 20 – Flattening and Polishing the Ura

A mind needs books as a sword needs a whetstone, if it is to keep its edge.

George R.R. Martin

Now that we are geared-up and our sharpening stones are flat, let’s make our blade sharp. The first step in sharpening a new blade is truing the ura. So let’s get to it.

General

All standard chisel blades and plane blades, whether Japanese or Western, need to have a planar flat or ura that it will be in contact with the sharpening stones its full width, and ideally, full length. Perfection is not necessary, however, so don’t let yourself get obsessive. If the ura is arched (concave), for instance, so it is in contact with a flat sharpening stone near the neck of a chisel, or head of a plane blade, and the cutting edge, that may be workable, but it must be in complete contact right behind the cutting edge. I cannot stress this importance of this point too strongly.

Once the ura of your chisel is flat and true, you should not need to true it again unless the blade needs major repairs. Japanese plane blades, on the other hand, are a little more complicated because repeated sharpenings tend to gradually wear out the land right in front of the cutting edge, called the “ito ura,” and the bevel must be tapped-out to compensate, and the ura re-flattened. I won’t delve into the subject of “tapping out” the ura of plane blades in this post but will save it for future discussions about Japanese planes.

Evaluate the Ura

The first step in flattening or truing an ura is to evaluate its condition. Don’t start grinding away willy nilly without first checking it and making a plan. If you find you cannot stop yourself, don’t walk but run to the nearest pharmacy and buy a bucket of the medicine discussed in part 19 in this series about maintaining sharpening stones.

There are several ways to check the ura’s condition. A narrow straightedge works well in most cases. Place the edge on top of the full length of the shiny land at one side of the ura all the way to the cutting edge. Keep the straightedge touching the land; Don’t let it span the hollow- ground urasuki. Hold the straightedge and blade up to a strong light source and look for light passing between them. This technique is quick and dirty and will suffice in most cases, but does not tell you a lot about twist.

Use a straightedge to check the right and left lands for flatness. It doesn’t do any good to span the hollow-ground urasuki, so don’t bother. These photos are taken from above for clarity, but you want to hold the blade and straightedge together up to a strong light to observe any light showing between them that will indicate a gap. I am using a small square, but a simple small straightedge is more convenient. This takes a bit of coordination so be careful not to drop a chisel on your toe. I’ve done this once or twice before. Monkey-football.
This is a 30mm Sukemaru atsunomi, a famous brand and an excellent and powerful chisel hand-forged by Mr. Usui from Shirogami No.1 Steel. It’s in pretty good shape, but can benefit from a little truing as can most new chisels and plane blades.

Another method to check the ura for planar is to paint the shiny lands with dark marking pen ink or Dykem liquid, apply a bit of fine sharpening stone mud to a piece of flat glass, like the piece mentioned in Part 17, and rub the blade’s flat or ura over the glass. The high spots will become obvious. If the ura is banana shaped (convex), mark the high spot with your marking pen. More often than not, the ura of chisels will be generally flat, but the last 6mm or so of the cutting edge will be curved upwards towards the chisel’s face.

I learned two things from my examination of this Sukemaru brand atsunomi. First, there is a high spot (convex) at the skinny land on one side located approximately 1/2 to 5/8 the blades’s distance from the cutting edge. The land on the other side seems a little low. Hmm, curious. This is a bit unusual, but it happens when a blade warps during heat treat, which Shirogami steels tends to do frequently.

The second problem I observed was that the last 3~4mm of the land right behind the cutting edge curves downward away from the ura just a tiny bit, enough to cause problems.

I next need a plan to resolve these problems with a minimum of time and effort and without making things worse.

Make a Plan

The temptation to start grinding away immediately will be powerful. If it becomes too much, take a coffee cup or three of the medicine mentioned above and slather it on your head forcefully. Don’t hold back, for Pete’s sake, rub it in really good now. Some say my excessive use of this medicine is why I am as bald as an egg, but I prefer to believe it is caused by the light radiating from my gigantic brain (ツ). Thank goodness for my aluminum foil skull cap with its protruding copper wires!

Any plan needs goals and objectives. In this case the goal is a perfectly planar ura, but if this goal is difficult to achieve quickly there is an objective you should plan to achieve immediately in any case, one that may make it possible to achieve the larger goal over multiple routine sharpening sessions without any special effort.

As I keep harping, to make a chisel or plane work well, you need a flat area right at the cutting edge. This is where the cutting occurs and the area I need to keep sharp, so I will make creating this flat area the first objective in my plan, and then determine the steps to achieve it. Make certain every step in your plan and every stroke on the stones gets you closer to this objective, not further away. This means working smart.

If the blade is arched (concave), touching at two points, one near the neck of the chisel blade, or head of the plane blade, and at the other at the cutting edge, and not in between, all is well. I recommend you leave a blade like this as-is because after a few sharpening sessions the ura will become flat and twist-free without any special effort, and the blade will become very sharp and be entirely functional.

If the blade is wavy (rare) or banana-shaped (convex), your plan needs to take those details into account.

I located the highest point of the bulging area at the ura and marked a line across it with my marking pen. I then measured halfway between this line and the cutting edge and made another line. This area we will call the “focus line.” It is here where I need to focus the most pressure when grinding down the ura, not the entire length of the blade.

The purpose of doing all this prissy planning and layout work is to protect the right and left side lands from being wasted unnecessarily. Newbies try to work the entire length of the blade, but this is illogical and ignores three points. The first point is that the majority of the metal I need to waste is usually located to the right and left of the land nearest the cutting edge, not the full length of the blade, so there is little benefit to grinding the entire ura. The second point is that the side lands are thin as a blade of grass and will abrade very quickly with almost no effort. Besides, without using large plates and stones, it is very difficult to work the blade’s full length accurately without wearing notches in the side lands anyway. The third point is it makes no sense to try to grind down the land nearest the neck since the plane of the ura hinges on this land. Best to leave it alone and focus my efforts where they will make a difference.

Plane blades don’t even have a land near the head, so the futility of working the entire ura on plane blades is even more obvious than for a chisel.

Work the Plan

The traditional Japanese tool used to flatten and/or correct ura is a smooth steel lapping plate called a kanaban, meaning “metal plate.” To use it, carborundum powder and water are placed on the plate, and the blade is lapped. This is not a difficult process at all, but there is a tendency for the blade’s perimeter to be ground more than the interior areas as the grit is forced in between the kanaban and the blade’s perimeter. To avoid this tendency, and to speed the process up, I prefer to use diamond plates instead of kanaban.

Whatever plan you developed, and whichever tool you selected for this job, the time has come to work the plan. Do you need more medicine? A bigger coffee cup?

First, color the ura’s perimeter lands with a marking pen or Dykem to help you see where the ura is being ground down. Don’t ever guess.

Place the most pressure on the focus line selected above. Move the blade back and forth (not side to side) onto and off of the diamond plate or kanaban with the cutting edge and the focus line always touching the diamond plate or kanaban. Don’t go past the high point for now. Be careful to not grind a notch into the narrow side lands where they meet the edge of the diamond plate or kanaban. Most people make this mistake at first.

Grind the ura down so the line at the highest point and the cutting edge is fairly flat.

Work the blade on and off the edge of the diamond plate using short strokes and without going much past the highest point marked earlier. This works because the right and left side lands are thin and can be abraded in just a few strokes. I have moved my fingers to reveal the lines, but in actuality my fingers will press down hard on the focus line while working the blade.
Using a stick to apply more pressure to the blade. I am holding the end of the stick and the chisel’s handle together in my right hand. This is simply illustrating a technique. This chisel did not actually require this sort of aggressive attention.
The same stick technique works even better for plane blades and makes it easier to apply pressure right behind the cutting edge. When doing this, however, be sure to work the blade both forward and backward while moving it right and left on and off the plate’s edge to avoid digging a trench in the narrow side lands.

Remember, the narrow lands at the sides of the hollow-ground urasuki will abrade down quickly. And the rest of the ura can be gradually flattened during subsequent sharpening sessions using regular sharpening stones. It doesn’t need to be made perfect immediately. What matters most is the steel on the land right at the cutting edge.

The high spot on the land near the top of the photo has been relieved after a few passes on the #400 diamond plate. The side lands are in fair condition, and the land behind the cutting edge (itoura) needs just a little more work.
After a few more passes on the diamond plate, the ura is in good shape. Note the land at the photo’s bottom is not in full contact, but the opposite side is. This is will not impact the blade’s performance, and will work itself out during future sharpening sessions without special attention.
Flattening my stones before using them. Notice I am using two 1,000 grit stones to save time and stones. Don’t neglect flattening your stones, whether you use waterstones, novaculite stones, coticule, or even sandpaper.
Working the ura on the flat 1000 grit waterstone. Did I mention it is flat? Notice that I am working on and off the stone, not side to side, to save the right and left lands. Some but not all strokes are full length. The goal is simply to remove the deep scratches left by the diamond plate.
The ura after polishing on the flat 1000 grit waterstone. At this point the ura is in good shape. Notice how the land at the photo’s left is wider that elsewhere. This increase in width developed because this location was the high spot on this convex ura. Notice how the land on the left side is not even touching the plane in one area. What you should take away from this photo is the realization that if I had focused my efforts on this high location first and ignored the downward curvature of the land nearest the cutting edge, I would have wasted a lot more time and valuable metal only to shorten the useful life of this excellent chisel. Do you see the benefit of carefully checking the ura’s condition, making a plan with clear goals and objectives, and then working the plan? Did the medicine work? Next, we’ll work on the bevel, make a tiny burr, polish it off by making a few strokes alternating from bevel to ura, and be ready for the finishing stone.
Working the bevel on the flat 1,000 grit waterstone. Notice the mud piling up in front of the blade indicating the extreme cutting edge is in contact with the stone. I am applying pressure only on the push stroke to prevent the stone from rocking and developing a “bulging bevel,” A honing jig is not necessary.
The bevel after working on the 1,000 grit waterstone. No jigs were used. No “tricks” involving rulers were used. A silly, inefficient “micro-bevel” was neither wanted nor needed. The bevel is perfectly flat. Flattening the ura and polishing both ura and bevel to this level took less than ten minutes. When the purchaser of this blade eventually dulls the edge, he should not need to spend more than 2~3 minutes to sharpen this blade once his gear is ready, assuming he is able to sharpen freehand.

Polish a blade’s ura up to the level of your finest finishing stone once, and don’t touch it with rougher stones again unless it is absolutely necessary, or further gradual flattening is required. This means that in normal sharpening sessions you must remove all the damage at the cutting edge by abrading the bevel with the rougher stones, and only when the bevel is ready for the finish stone, do you work on the flat or ura, alternating from bevel to flat/ura until all defects, burrs, and even visible scratches are polished away.

If you condition the flat (ura) side of the blade correctly, and keep it polished, you should not need to work it on anything but your finish stone until it is time to tap out and grind the ura or back in the case of plane blades. Therefore, the bevel side of the blade is where we spend most of our time and effort.

Now that the ura is in good shape, we will look at sharpening the other side of the wedge, the blade’s bevel, in the next post in the series.

YMHOS

Links to Other Posts in the “Sharpening” Series

Sharpening Japanese Woodworking Tools Part 1

Sharpening Part 2 – The Journey

Sharpening Part 3 – Philosophy

Sharpening Part 4 – ‘Nando and the Sword Sharpener

Sharpening Part 5 – The Sharp Edge

Sharpening Part 6 – The Mystery of Steel

Sharpening Part 7 – The Alchemy of Hard Steel 鋼

Sharpening Part 8 – Soft Iron 地金

Sharpening Part 9 – Hard Steel & Soft Iron 鍛接

Sharpening Part 10 – The Ura 浦

Sharpening Part 11 – Supernatural Bevel Angles

Sharpening Part 12 – Skewampus Blades, Curved Cutting Edges, and Monkeyshines

Sharpening Part 13 – Nitty Gritty

Sharpening Part 14 – Natural Sharpening Stones

Sharpening Part 15 – The Most Important Stone

Sharpening Part 16 – Pixie Dust

Sharpening Part 17 – Gear

Sharpening Part 18 – The Nagura Stone

Sharpening Part 19 – Maintaining Sharpening Stones

Sharpening Part 20 – Flattening and Polishing the Ura

Sharpening Part 21 – The Bulging Bevel

Sharpening Part 22 – The Double-bevel Blues

Sharpening Part 23 – Stance & Grip

Sharpening Part 24 – Sharpening Direction

Sharpening Part 25 – Short Strokes

Sharpening Part 26 – The Taming of the Skew

Sharpening Part 27 – The Entire Face

Sharpening Part 28 – The Minuscule Burr

Sharpening Part 29 – An Example

If you have questions or would like to learn more about our tools, please use the questions form located immediately below. Please share your insights and comments with everyone in the form located further below labeled “Leave a Reply.” We aren’t evil Google or incompetent facebook and so won’t sell, share, or profitably “misplace” your information. Honest Injun.

Sharpening Part 19 – Maintaining Sharpening Stones

砥石の面直しについて :鑿研ぎ練習 番外編_e0248405_17182931.jpg

Give me six hours to chop down a tree and I will spend the first four sharpening the axe.

Abraham Lincoln

Sharpening stones must be maintained if they are to perform effectively. Abe Lincoln’s quote above is especially relevant to this subject.

There is a lot of hogwash taught as holy gospel on this subject, so in this post I will suggest some more or less traditional methods that I know both work well, and are cost-effective. Do with them as you will.

Key Principles

Let’s begin with a few basic but critical principles for sharpening:

  1. For the majority, but not all, applications, your blades need to meet the following standards:
    • Flat back/ura: perfection is not necessary but it must be flat enough for you to be able to consistently work the steel directly behind the cutting edge on your finishing stone;
    • Flat bevel, for same reason mentioned above;
    • Straight cutting edge (except when a curved cutting edge is required).
  2. All Stones get out of tolerance with use. Working a steel blade on a sharpening stone of any kind, whether waterstone, novaculite, coticule or carborundum, wears the stone a little bit with each stroke, creating a dished-out, twisted surface to one degree or another, even if you can’t detect the distortion with Mark-1 eyeball. Therefore, you need to frequently check and periodically true your stones;
  3. Despite what many imagine, a hollowed-out stone cannot reliably maintain a blade with a planar ura, a flat bevel, and a straight cutting edge, but it can damage the blade being sharpened.

The Rule of Seven applies, so reread these three critical points three times, click your heels three times, and ask the gods of handsaws to help you remember them.

Albrecht Dürer - Melencolia I - Google Art Project ( AGDdr3EHmNGyA).jpg
Melencolia I by Albrecht Dürer 1514
What is the angel pondering? Sharpening, no doubt.

Pretty simple stuff, right? I apologize if you already know these things, but you would be surprised how many people know them but still ignore them, and then wonder why their blades won’t behave. Iron Pixies? Nah. Perhaps Mifune Toshiro said it best in Akira Kurosawa’s movie Yojimbo when he quoted the old Japanese proverb: “There’s no medicine for foolishness” (馬鹿に付ける薬はない).

Toshirô Mifune in Yôjinbô (1961)
A scene from Akira Kurosawa’s classic movie Yojimbo (1961), the inspiration for the later spaghetti westerns beginning in 1964 and even the more recent TV show The Mandalorian. In this scene, the nameless loner anti-hero is warning off some ruffians who have bragged about their tattoos and the death sentences hanging over their heads and informed him they aren’t afraid of him or the pain of being cut. The hero responds with the proverb “There’s no medicine for a fool,” then tests their resolve by cutting 3 of them. Ouch! A hard lesson easily avoided. BTW, if you have tattoos and visit Japan, best to keep them covered since they have an old and indelible association with criminal organizations and judicial branding.

Here’s the scene on YouTube. Please don’t watch it if you are squeamish. Never call the Man With No Name’s bluff.

Yôjinbô (1961)
The Man With No Name (aka Kawabatake Sanjuro played by Mifune Toshiro) pondering the interesting financial opportunities awaiting him in the troubled little post town. His older swordsmith friend (Tono Eijiro) bitterly objects. He was right.

Although it has only happened once or twice in my recollection (my saintly wife of the jaundiced eye may disagree (ツ)), on those few occasions when I have made a stupid mistake I have been known to ask subordinates to go buy a large bucket of “Idiot Salve” for me at the drugstore. The jury is still out on the effectiveness of this ointment, but I would like some credit for writing this entire article without using it.

But I digress.

Obviously, if every stroke wears the stone a little, then we must constantly check our stones with a stainless steel straightedge for flatness (length and width) and wind (diagonals) as we use them. It takes 5 seconds. Even if your stones are brand new, you may find distortions. Time spent checking is not wasted if it results in improvement. This is the heart of quality control, and is applicable to everything in life.

Truing Stones

When your check reveals the stone is out of tolerance, you need to flatten/true it. Don’t put it off. There are many ways to get this job done. Some people advocate using diamond plates to flatten stones. Others insist that sandpaper is best. And then there are the specialty flattening stones. It ain’t rocket surgery. All these methods work, but are unnecessarily costly and time consuming in my opinion. The following is the procedure I use and recommend. Give it a try, Gentle Reader, before you dismiss it.

  • Always have two of each of your rougher stones soaked and ready to go when you start sharpening. This means 2 – 1,000 grit stones, and 2 – 2,000 grit stones in my case. If you use your tools, owning these extra stones is never wasted money.
  • If the blade is damaged, for instance chipped or dinged, begin with a rougher stone or diamond plate, whatever you have that will waste metal quickly and easily while keeping the blade’s bevel flat.
  • If your blade is not damaged, begin the sharpening process with a fresh, flat stone, for instance 1,000 grit. Turn the stone end-for-end halfway through the estimated number of required strokes and continue sharpening. Yes, you need to keep track of your strokes, at least approximately. This will become second nature with practice.
  • Occasionally check the stone for dishing and wind using your stainless steel straightedge. With practice you will develop a sense of the stone’s condition without the need to use a straightedge. Stop using the stone when the distortion becomes noticeable.
  • Switch the distorted stone with your flat stone of the same grit and continue sharpening.
  • When both stones become distorted to the same degree, cross-hatch the faces of both with a carpenter’s pencil, then rub them against each other under running water if possible, or while frequently adding water if not. Make short strokes and be careful to apply even pressure to the stones . This requires self-control and is more difficult than it sounds until you get used to doing it. The friction and water will wear the high spots down.
  • Switch the stones end-for-end frequently to ensure the stones wear evenly. Monitor the pencil marks to track progress.
  • Check with a straightedge frequently, and stop when both stones are flat, or maybe even a tiny bit convex.

With practice, and if you don’t let your stone’s condition get out of hand, this process should take only a few seconds, but it will ensure you are always working on flat stones.

If you think this technique is slower than using a diamond plate, specialty flattening stone, or sandpaper, you are overlooking a key point, namely, that it makes it possible to flatten two stones at the same time with the same hand movements. It may be slower than flattening a single stone with a diamond plate, but it is definitely quicker than using the same diamond plate to true two stones one at a time. Think about it.

It’s also cheaper because diamond plates are costly, and wear out. The specialty flattening stones are not cheap, and they too wear out. Both methods can contaminate stones, in my experience. And sandpaper wears out quickest of all and is the most expensive method long-term.

Now you have two stones of the same grit on-hand that are flat, free of contamination, and ready to rock-n-roll without wasting time or money on diamond plates, sandpaper, or special flattening tools. This means you have four fresh, flat surfaces at the beginning of the work day to use before you need to take time away from your paying job. And if you pay attention when sharpening, and take care to use each stone’s entire face, the time between sharpenings can be increased while saving significant amounts of cashy money.

Finishing stones seldom require flattening, but the same procedure can be used. A better solution is to the use the float-glass lapping plate described next.

If you need to get a stone extra flat, rub the stone on the  ⅜~1/2” (10~12mm) or thicker plate glass mentioned in the previous post. You can often bum scrap pieces of glass from glass stores or contractors. Dumpster diving behind a glazing shop may prove useful if you are careful and don’t cut your arm off. Don’t forget to remove the sharp corners and edges with a carborundum stone or you might end up like the annoying guy in the video linked to above.

To turn the plate glass into a lapping plate, aggressively roughen one side with a carborundum stone, and clean it thoroughly with a scrub brush, soap and running water to remove every trace of glass and stone particles. Then clean your brush and scrub the glass again. These scratches you just made will turn it into an inexpensive and efficient lapping plate. Trust me. Just wet the glass and rub the stone on it while rinsing frequently. Try to use the entire surface of the plate, not just the center.

If a stone becomes grossly distorted, you can use a rougher stone or diamond plate to true it. Even a concrete sidewalk and garden hose will do the job. However, if you do this, remember that there is no way to avoid contaminating the finer stone with embedded grit from the rougher stone or concrete.

To remove the offending stone particles, scrub the stone’s faces, sides and ends with a rough bristle brush under running water. Finish by polishing the stone’s face with a nagura stone, and rinsing well.

You should also use your nagura stone frequently to dress and true the faces of your finishing stones.

Don’t forget to maintain the edge chamfers on your stones and keep them free of contamination too.

As with all things, moderation is best. A perfectly flat stone is expensive to maintain and not especially better for general woodworking than a pretty-flat stone. Beware! For this rabbit-hole is not only deep, but sleepless nights and gibbering insanity afflict many who strive to reach its darkest depths.

Rough Stone vs. Finer Stone

Here is an important factoid you should remember: A stone trued using a rougher stone or diamond plate will be effectively of rougher grit than its designation until its surface is worn smooth again. And it will wear faster too. But if you use identical grit stones (same brand is best) to true each other, the effective grit of each will remain unchanged.

Reread the last paragraph three times, click your heels three times, and do that prayer thing again. Namu Amida Butsu.

In this post we looked at inexpensive traditional ways to effectively flatten and maintain our sharpening stones long-term. Now that our stones are looking good, in the next post to this little theatre of gleeful mayhem and hogwash refutation we will be ready to consider how to use them to flatten and polish the ura of our blades. Y’all come back now y’hear.

YMHOS

Related image
I don’t want to hear no more of your cracks about hogwash. You said to clean the stones, didn’cha!?

Links to Other Posts in the “Sharpening” Series

Sharpening Japanese Woodworking Tools Part 1

Sharpening Part 2 – The Journey

Sharpening Part 3 – Philosophy

Sharpening Part 4 – ‘Nando and the Sword Sharpener

Sharpening Part 5 – The Sharp Edge

Sharpening Part 6 – The Mystery of Steel

Sharpening Part 7 – The Alchemy of Hard Steel 鋼

Sharpening Part 8 – Soft Iron 地金

Sharpening Part 9 – Hard Steel & Soft Iron 鍛接

Sharpening Part 10 – The Ura 浦

Sharpening Part 11 – Supernatural Bevel Angles

Sharpening Part 12 – Skewampus Blades, Curved Cutting Edges, and Monkeyshines

Sharpening Part 13 – Nitty Gritty

Sharpening Part 14 – Natural Sharpening Stones

Sharpening Part 15 – The Most Important Stone

Sharpening Part 16 – Pixie Dust

Sharpening Part 17 – Gear

Sharpening Part 18 – The Nagura Stone

Sharpening Part 19 – Maintaining Sharpening Stones

Sharpening Part 20 – Flattening and Polishing the Ura

Sharpening Part 21 – The Bulging Bevel

Sharpening Part 22 – The Double-bevel Blues

Sharpening Part 23 – Stance & Grip

Sharpening Part 24 – Sharpening Direction

Sharpening Part 25 – Short Strokes

Sharpening Part 26 – The Taming of the Skew

Sharpening Part 27 – The Entire Face

Sharpening Part 28 – The Minuscule Burr

Sharpening Part 29 – An Example

If you have questions or would like to learn more about our tools, please use the questions form located immediately below. Please share your insights and comments with everyone in the form located further below labeled “Leave a Reply.” We aren’t evil Google or incompetent facebook and so won’t sell, share, or profitably “misplace” your information.

Sharpening Part 18 – The Nagura Stone

In the previous post we listed some of the tools and accouterments necessary for sharpening Japanese tools using waterstones. In this post we will examine one especially useful stone mentioned previously: the Nagura. I know, it sounds like the name of some smelly, creepy thing that crawled out of a mountain cave in Angmar in LOTR, but if you don’t have this Nagura, you should get one.

The Nagura Stone

Nagura stones have been used in Japan for millennia, but they are not unique to Japan. For instance, the Coticule stones of Northern European have been used with nagura-equivalent stones since before Roman times. And I would not be surprised if the same tradition existed elsewhere too, they are so useful.

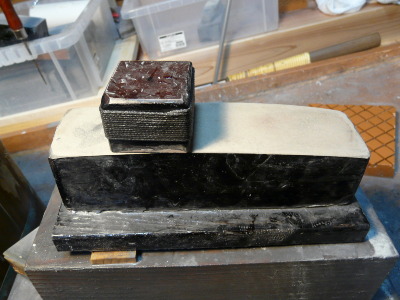

A Tsushima Black Nagura stone 55x55x55mm

There are several varieties of Nagura stones mined in Japan, the two most popular being the grey/black Tsushima stone pictured above and the softer white Mikawa stone pictured below. I use a soft white Mikawa Nagura stone for my straight razor.

Mikawa Nagura Stone

The black Tsushima variety is cut from sedimentary stone on the ocean floor near Tsushima in Nagasaki Prefecture, located midway between Japan’s Kyushu island and South Korea. I believe it to be the best for general usage so I will discuss this stone in particular.

Like all Japanese natural stones, Tsushima Black Nagura Stones are sedimentary deposits created by airborne volcanic ash being sifted by distance and wind and filtered by waves and tides by the time they reach the ocean floor. But they have not been subjected to the metamorphic weight and heat that makes harder sedimentary stones, and are relatively soft and permeable. They also tend to crack in the same plane they were laid down to in, especially if subjected to wet/dry and/ or freeze/ thaw cycles, so special measures are necessary to protect them.

The Job of the Nagura Stone

The Nagura stone is typically used to perform five tasks.

1. Cleaning Finishing Stones: Finishing stones become contaminated with pixie dust and grit from rougher stones. A 10,000 grit stone with 1,000 grit particles mixed in is much less than 10,000 grit effective. If you think a stone is contaminated, wash it well with a scrub brush and clean water then work the surface with the Nagura stone to loosen and float up the contaminate particles, then wash off the slurry. The stone will be clean.

2. Removing Clogging: Similar to 1 above, the Nagura stone is effective at unclogging dried slurry and metal swarth from the sharpening stone’s surface helping it get back to work sooner.

3. Truing Stone Surfaces: Finishing Stones need to be trued occasionally, usually the corners and edges. Use the Nagura periodically to knock these high spots down. The resulting slurry can be used for your normal sharpening process without it all going to waste.

4. Reducing Startup Time: Time is money. Waterstones abrade most efficiently when they have a slurry worked up, but it can take time to get decent slurry started on some stones, especially hard ones, and with some blades, especially those with soft jigane. Use the Nagura to quickly develop this necessary slurry saving time and money. If you focus on the corners of the stones, which tend to be high anyway, it will contribute to truing the stone as mentioned in 2 above.

5. Reducing the Average Particle Size in the Slurry: Nagura grit is quite fine. You can add Nagura slurry to a stone (by rubbing the stone to create slurry at corners and edges, BTW) to reduce the average grit size of the slurry making a stone create finer scratches and a better polish. For instance, adding Nagura slurry to a 8,000 grit stone makes it polish more like a 9,000-10,000 grit natural stone.

Using the Nagura Stone

Nagura stones are just as useful when sharpening with synthetic sharpening stones as they are with natural stones. In fact, they may be even more useful with synthetic stones since synthetic stone slurry containing nagura particles more closely approximates the positive aspects of natural stones.

Nagura stones are easy to use. Simply wet the large stone and rub the small stone on its surface. You may need to add additional drops of clean water while doing this. The goal is to wear down the high spots on the large stone while at the same time producing a slurry mixture from both stones to use when sharpening blades.

The key is to pay attention, use your handy dandy stainless steel ruler to identify the high spots, and use the nagura on those areas first. Don’t be a ninny and rub the nagura all over the place willy nilly. Make a plan. Work the plan. Develop good habits and speed will follow.

If the large stone is already perfectly flat, and you need to produce a starting slurry, work the ends and corners of the large stone with the nagura in anticipation of those areas becoming high in the near future. That’s a good boy.

Protecting the Tsushima Nagura Stone

Nagura stones are fragile. To avoid water penetration and cracking, it is wise to use the side of the stone that was in a horizontal plane when it was formed. It is also wisdom to use only one surface of the stone and to coat the stone’s other 5 sides with paint to prevent water infiltration and cracking, and to keep skin oils from penetrating. Traditionally, natural urushi lacquer made from a poisonous tree sap has been in Japan used for this purpose, but any high-solids urethane will do the job.

The Nagura stone is a subtle tool. As your skill using natural sharpening stones improves the value of this tool will become apparent.

In the next article in this depraved series of sex and scandal we will discuss ways to maintain sharpening stones. Some people will be miffed. Others will be thrilled. What about you?

YMHOS

Links to Other Posts in the “Sharpening” Series

Sharpening Japanese Woodworking Tools Part 1

Sharpening Part 2 – The Journey

Sharpening Part 3 – Philosophy

Sharpening Part 4 – ‘Nando and the Sword Sharpener

Sharpening Part 5 – The Sharp Edge

Sharpening Part 6 – The Mystery of Steel

Sharpening Part 7 – The Alchemy of Hard Steel 鋼

Sharpening Part 8 – Soft Iron 地金

Sharpening Part 9 – Hard Steel & Soft Iron 鍛接

Sharpening Part 10 – The Ura 浦

Sharpening Part 11 – Supernatural Bevel Angles

Sharpening Part 12 – Skewampus Blades, Curved Cutting Edges, and Monkeyshines

Sharpening Part 13 – Nitty Gritty

Sharpening Part 14 – Natural Sharpening Stones

Sharpening Part 15 – The Most Important Stone

Sharpening Part 16 – Pixie Dust

Sharpening Part 17 – Gear

Sharpening Part 18 – The Nagura Stone

Sharpening Part 19 – Maintaining Sharpening Stones

Sharpening Part 20 – Flattening and Polishing the Ura

Sharpening Part 21 – The Bulging Bevel

Sharpening Part 22 – The Double-bevel Blues

Sharpening Part 23 – Stance & Grip

Sharpening Part 24 – Sharpening Direction

Sharpening Part 25 – Short Strokes

Sharpening Part 26 – The Taming of the Skew

Sharpening Part 27 – The Entire Face

Sharpening Part 28 – The Minuscule Burr

Sharpening Part 29 – An Example

If you have questions or would like to learn more about our tools, please use the questions form located immediately below. Please share your insights and comments with everyone in the form located further below labeled “Leave a Reply.” We aren’t evil Google or incompetent facebook and so won’t sell, share, or conveniently and profitably “misplace” your information.

Sharpening Part 17 – Gear

Do what you can, with what you have, where you are.

Theodore Roosevelt

Sharpening can be a stuff-intensive process, so I want to reduce the number of accoutrement to the barest minimum especially since portability is always a factor in my case. The following is a list of some gear, besides sharpening stones, that I am confident will prove useful whether in your workshop or the jobsite.

I will first list the gear needed for general sharpening either in the workshop or the field. At the end of this article that I have listed a minimal set of gear for use specifically in the field where space and weight might make it inconvenient to carry the heavier/bulkier general set of sharpening gear.

General Set of Sharpening Gear

The following is a list of tools and equipment I think are indispensable for sharpening Japanese woodworking tools in general and in many, but not all, circumstances. I have not included some tools that may be necessary for doing “uradashi,” i.e. “tapping out” the hollow-ground urasuki of Japanese plane blades. So here we go.

  1. Stone Base or Holder: A wooden base with a wedge to secure stones is the old standby, but repeated wetting and drying and the resulting expansion and contraction may compromise a wooden base over time. For my synthetic stones I have come to prefer the commercial bases with twin metal rods and rubber feet. They are unromantic, but are durable, stable, non-slip, grip the stone tightly without breaking it, and work well anywhere. If you decide to make and use a wooden base, I highly recommend Ipe wood because it is stable, unaffected by water, won’t rot, and bugs hate it.
Washing powder storage square plastic buckets in 2L 5L 8L 10L 15L 18L 20L

2. Soaking Bucket for stones: A medium size plastic or steel mop bucket (not the heavy industrial unit with rollers) is best for soaking stones because they are durable, and their more or less rectangular shape is superior to round buckets for leaning stones on end against the inside walls. You don’t want to stack the stones on top of each other if you can avoid it. Any durable bucket that doesn’t leak will work, but a tightly-fitting lid is a big advantage. You will need to soak all but your diamond plate and finishing stones in this bucket before use.

Related image

I soak my synthetic stones 365 days a year. I close the lid to prevent evaporation and keep out mosquitoes, journalists and tax collectors, and add either washing soda, borax or a few drops of Simple Green ProD5 concentrate to the water to prevent bugs and algae from growing when I won’t be using the stones for a while. Simple Green is a better bug/algae killer, but Borax has the advantage of making the water slightly alkali which helps prevent rust in my blades during sharpening.

Some stones use a magnesium-based binder that can dissolve and weaken them if left soaking for long periods of time. Please refer to the manufacturer’s instructions.

3. Glass Plate: 9mm~12mm thick float glass. This is used to true the faces of waterstones when they become distorted through use. The piece I use is 60mm x 30mm x 10mm. This plate can be used for many other purposes including checking the fettle of your plane’s soles. I leave this in my workshop. We will discuss how to use this in future posts in this series, God willing and the creek don’t rise.

4. Working Surface: If working outside, a Japanese craftsman will place his stone holder directly on the ground or concrete slab. A craftsman that works inside a shop will often have a wooden or plastic box with a board spanning the narrowest dimension forming a bridge. The stone rests on this bridge, often with a wet towel between board and stone to prevent slipping. This box, called a pond, catches water and mud dripping from the stones. The ideal situation is a board spanning a sink with a faucet of running water. When away from the workshop, I prefer to place a piece of fiberglass-reinforced rubber roofing membrane on a truck’s tailgate or stack of boards or gypboard at a jobsite. I can roll-up this lightweight, tough, and absolutely waterproof mat and stuff it into my toolbox for easy transport. In my workshop, I use a large plastic cutting mat on my workbench, but any waterproof non-slip surface will work. No need to get fancy. My stones and sharpening gear are stored under my workbench close at hand.

5. Water Source: While sharpening, you will frequently need water to wet your stones and rinse blades. If you work at a sink, use the faucet. If you work outside, a garden hose works great. Some people, mostly knife sharpeners who seldom use stones finer than medium grit, will scoop water from their pond or bucket to wet their stones. However, since stone slurry drips into the pond, or washes off the surface of stones soaked in the bucket, this water will always contaminate stones with the grit from rougher stones, making it difficult to remove all the scratches left by the previous stone. To avoid this contamination, always use clean water for wetting and rinsing.

Some people prefer a spray bottle to add water, but spray bottles wet things I prefer to keep dry, so a better choice, in my opinion, is a plastic bottle such as a dishwashing soap bottle or a plastic lab wash bottle with a bent tube coming out the top. Almost any plastic squeeze bottle will work.

Tap water contains chlorine in all but backward countries, and chlorine accumulates and accelerates rust, so I use distilled water in my wash bottle, and add washing soda or borax to adjust the water’s PH, a technique I learned from sword sharpeners.

Some people add just a bit of liquid lye to their water to adjust the PH. This chemical can be purchased from industrial cleaning supply companies. Too much will damage your skin, so be careful. Also good for keeping Iron Pixies in the shadows.

6. Sharpening Station and/or Sharpening Pond: I don’t use a sharpening pond, and don’t believe them to be essential, but several practical options are illustrated below.

余暇のある時や休日だけに出現するものであるにせよ、専用の研ぎ場があるというのは工作をするものにとって幸せなことです。自分なりに工夫を重ねながら研究を深めてゆくのは、何よりも楽しみを感じさせてくれるでしょう。
A bridge placed over a sink forms the ideal sharpening station. Professional workshops frequently use this classic arrangement. Flush the drain well. You may need to remove the sinks’s P trap and clean sharpening stone mud out of it every couple of years.
Plastic boxes placed inside a wooden box make a portable sharpening pond and stone storage box. There are dozens of variations on this theme possible.
Related image
Perhaps the best solution in my experience (short of a dedicated sink) is a plastic box to catch water, with another plastic box nested inside containing sharpening accoutrements such as a wash bottle, brush, abrasive powders, an oiler, and nagura stone. This equipment, along with the sharpening stones, 2 bases and stainless steel straightedge pictured, can be stored inside the box and the lid closed for ease of transport and to keep out pixie dust. This is an inexpensive and extremely practical solution, but be sure to use a high-quality box made of high-impact plastic.
Another plastic box used as a sharpening pond with a simpler bridge.
Image result for straightedge

7. Stainless steel straightedge: Use this to check stones for flatness and wind, and cutting edges for straightness. Don’t use a plain steel one unless you want to give the iron pixies skulking under your workbench great joy. The thinner the better. The thick blades used in combo squares are difficult to use in less than ideal light

8. Wiping materials: You will need something to clean and dry your blades during sharpening sessions. Rags work well for wiping and drying blades, and can be washed and reused, but be careful to avoid cross-contamination. Paper towels are most effective and convenient in my experience, but they cost money and make garbage. Decisions decisions.

The classic Japanese “Baby Turtle” brush with palm-fibre bristles.

9. Scrub brush: A clean stone is a happy stone, as are bases, buckets and glass plates, all of which have grooves and scratches and holes where grit can hide. Scrub brushes are great for digging out this contaminating grit. Palm fiber brushes are ideal because the bristles are finer and grit does not get embedded into the bristles as much as plastic brushes.

Lie-Nielson Honing Guide. An excellent if expensive tool.

10. Honing Guide: This tool is optional. I hesitate to recommend these jigs because they can easily become a crutch preventing you from becoming proficient at freehand sharpening. However, jigs make it much easier and quicker to shape blades to the desired angle on rough stones, especially when correcting a double-bevel or bulging bevel to a more useful single, flat bevel. Eclipse-style honing guides work well. The die-cast versions are inexpensive. Lie-Nielson makes a terribly expensive version machined from stainless steel that I am fond of. Jigs won’t work for all blades, but it is worth having one.

tzushimanagura8_4
A Tsushima Nagura Stone

11. Nagura Stone: More details will be included in next post in this series.

Minimal Set of Sharpening Gear

Sometimes, especially when working at remote jobsites, weight and/or space may impose physical limits on the tools we can carry with us. The following is a list of the minimal set of sharpening tools I bring in these situations.

1. Stone Base: At the jobsite the stability this tool provides becomes more critical than ever, but if an ultra-light set of tools is needed, then it can be eliminated by placing the stone directly on the rubber sheet I use as a portable working surface.

2. Soaking Container: There are many potential solutions for soaking stones in a minimalist or ultra-light situation. I will describe just a few here. If I need to able to move wet waterstones to and from the jobsite during the workday, but a bucket full of water is not convenient to haul around without a truck. If clean water is available at the jobsite (water coming from newly-installed pre-flush plumbing may not be clean, BTW, and immediately post-flush it may contain lots of chlorine used to sterilize the pipes and fittings), then the minimalist solution I employ is to use a dry plastic bucket to carry tools, including sharpening gear, to and from the jobsite. I then add water before beginning the work day. Depending on the other tools I will need during the workday, this is often a good choice. Another option is to scrounge a joint compound bucket or paint bucket and leave it at the jobsite. But unless I have a gang box or other trustworthy tool lockup available at the jobsite, I still may need to transport at least one wet sharpening stone to and from the jobsite each day. The ultra-light solution I sometimes employ is to carry my waterstone(s) in a durable plastic container with a watertight lid, such as the thinner (6cm) rectangular containers by Tupperware. Water can be added at the jobsite to keep the stone(s) soaked and ready to rock-n-roll. And with the lid closed, dirt and dust can’t get in. An even lighter option is a heavy plastic bag. I place the stone(s) in the bag and carry it in my tool bag. At the jobsite, I can add water and close the bag with a thick rubber band to soak the stone(s). But be forewarned that these bags will not protect the stones, and the stones will make holes in the bag at the worst possible time.

3. Working Surface: I use the fiberglass-reinforced rubbber roofing membrane described in item 4 above. This is invaluable for many applications.

4. Water Source: Clean water is necessary even in the field to add to the stones and to wash mud off tools. To save space, I use a small plastic squeeze bottle with a tightly closing lid that originally contained ketchup. If clean water is available at the jobsite, I carry it in my toolbag empty.

5. Stainless Steel Straightedge: See Item 7 above. I use a thin, flexible, lightweight one in the field.

6. Wiping Materials: A clean face towel and a some folded paper towels work well.

7. Scrub Brush: I always bring my “Baby Turtle” scrub brush. It’s lighter in weight than a plastic brush and comes in handy for tasks beyond sharpening too.

8. Nagura Stone: Just in case I need to get an extra-fine finish.

The selection of stones I use at the jobsite will depend on the work planned for that particular day, but the minimal set is a 400 grit diamond plate, a 1,000 grit synthetic waterstone, and a 6,000 or 8,000 grit synthetic finishing stone. If I anticipate a lot of sharpening, and if weight is not critical, I will bring two 1,000 grit stones to provide 4 flat sharpening surfaces thereby reducing the need to spend time flattening stones at work. I can also use them to flatten each other. If I need to do some fine finish planing, such as when doing door modifications/installations, I will bring a 10,000 grit synthetic waterstone. And of course I always carry a Tsushima Nagura stone.

In the next post in this romantic series of adventures in sharpening will focus on the important Nagura stone. Stay tuned for muscled thews and busted bodices!

YMHOS

Links to Other Posts in the “Sharpening” Series

Sharpening Japanese Woodworking Tools Part 1

Sharpening Part 2 – The Journey

Sharpening Part 3 – Philosophy

Sharpening Part 4 – ‘Nando and the Sword Sharpener

Sharpening Part 5 – The Sharp Edge

Sharpening Part 6 – The Mystery of Steel

Sharpening Part 7 – The Alchemy of Hard Steel 鋼

Sharpening Part 8 – Soft Iron 地金

Sharpening Part 9 – Hard Steel & Soft Iron 鍛接

Sharpening Part 10 – The Ura 浦

Sharpening Part 11 – Supernatural Bevel Angles

Sharpening Part 12 – Skewampus Blades, Curved Cutting Edges, and Monkeyshines

Sharpening Part 13 – Nitty Gritty

Sharpening Part 14 – Natural Sharpening Stones

Sharpening Part 15 – The Most Important Stone

Sharpening Part 16 – Pixie Dust

Sharpening Part 17 – Gear

Sharpening Part 18 – The Nagura Stone

Sharpening Part 19 – Maintaining Sharpening Stones

Sharpening Part 20 – Flattening and Polishing the Ura

Sharpening Part 21 – The Bulging Bevel

Sharpening Part 22 – The Double-bevel Blues

Sharpening Part 23 – Stance & Grip

Sharpening Part 24 – Sharpening Direction

Sharpening Part 25 – Short Strokes

Sharpening Part 26 – The Taming of the Skew

Sharpening Part 27 – The Entire Face

Sharpening Part 28 – The Minuscule Burr

Sharpening Part 29 – An Example

If you have questions or would like to learn more about our tools, please use the questions form located immediately below. Please share your insights and comments with everyone in the form located further below labeled “Leave a Reply.” We aren’t evil Google or incompetent facebook and so won’t sell, share, or profitably “misplace” your information.

Sharpening Part 16 – Pixie Dust

Ashes to ashes, dust to dust, if the women don’t get you then the whiskey must.

Carl Sandburg
Related image

In the previous post we examined sharpening stones, the minimum set I recommend, those I typically use, and the most important stone in any set. In this post we will shift our focus to things that can go wrong when sharpening, including supernatural influences.

Dust Contamination

As I mentioned in the previous post in this series I almost never take a 10,000+ grit synthetic finishing stone or natural finishing stone to jobsites. This decision is based on observation under practical conditions: Jobsites are rough and dirty places, and stones are fragile.

Iron Pixies are rabid fans of Lingerie Football. Don’t hang posters or watch games in your workshop if you want to avoid crowds of the tiny beer-drinking fiends.

Even if Murphy is drunk and the Iron Pixies are distracted watching Lingerie Football on the boob tube (pun intended), airborne dust at the jobsite will always instantly degrade an expensive 12,000 grit rated stone to an effective 4,000 grit or less in an instant, making a fragile, expensive, ultra fine-grit stone pointless. How clean is your workplace? Something to think about. Seriously.

This is not just a theory that sprouted from my overactive imagination like a dandelion on a dung pile, but is scientifically verifiable. Give it try.

Get out your microscope or high-power loupe. Place a clean glass slide near where you will be sharpening. 60 minutes later, examine the slide and count the dust specks. How did they get there? Dust is in the air quite naturally, but vehicular and foot traffic kick up lots more.

Most of those dust specs are larger and harder than the grit that makes up your finishing stone. Imagine what happens to your blade when those pieces of relatively large, hard grit get mixed into the stone slurry, or become embedded into the stone’s surface. Not a pleasant thought.

Related image

Dust contamination even has historical precedence. Japanese sword sharpeners traditionally do their best work during the rainy season when there is less dust in the air to contaminate their stones.

Professionals that polish pianos, stone, glass and jewels are also sticklers for eliminating dust contamination.

Just design and build a few cleanrooms for picky customers with SEMs (scanning electron microscopes), or with lens coating equipment, or who make pharmaceuticals and you will get an education about dust and the problems it creates quickly.

What dust do we find at construction job sites or workshops? First, assuming we are working at a building project, there are exterior sources of dust. Unlike a house, the doors and windows are usually open to gain maximum circulation, even when dusty landscaping operations are ongoing and trucks carrying materials and garbage are running everywhere kicking up clouds of dust.

effects of dust on lungs

Second, unless you have the jobsite entirely to yourself, there are usually other trades inside the building grinding, sanding, cutting and walking around kicking dust into the air too. The most pernicious dust on the jobsite is drywall and joint compound. This white fluffy dust appears harmless, but it contains tiny granite silica particles harder than steel, that float around and settle on everything. They are a health hazard that has put more than one person in the hospital with respiratory problems. They will contaminate your sharpening stones.

Sandpaper, sanding discs, grinders and angle grinders also spray millions of tiny hard particles everywhere, many of which float in the air and can travel some distance before settling, especially inside an enclosed building or workshop.

dangers of dust on site

Does your business or home workshop have a large door facing a public road with cars and trucks going back and forth? Do people with muddy boots come in and out? Are dirty pallets with piles of dirt hidden on the bottom boards offloaded inside? Do you use sanders or grinders in your workshop?

If you are sharpening outside, or at a dusty jobsite, or inside a dusty workshop, and especially if you regularly use sanders and grinders there, I recommend the following procedures before you use fine-grit stones:

  1. Try to locate your sharpening area away from foot traffic, grinding and sanding operations, and dusty areas;
  2. Sweep the surrounding floors well, since it is the movement of feet that billows settled dust back up into the air, and wait at least 15 minutes after sweeping for the dust to settle before sharpening;
  3. Wet the surrounding ground or floor with water to keep the dust down (this makes a big difference);
  4. Lay a clean cloth or a sheet of clean newspaper over your fine stone when you are not using it for more than a couple of minutes to prevent airborne dust from settling on it;
  5. Keep your fine stone wrapped in a clean cloth or newspaper when you are not using it;
  6. Scrub your fine stone under running water with dishwashing soap (neutral PH) and a clean natural-bristle brush before each use to remove dust and embedded grit.

And for heaven sake, even if you can’t take your benchdogs with you everywhere, at least have a brass bevel angle gauge in your toolkit, and use it everytime you sharpen, to keep the pernicious pixies at bay. I hang mine around my neck from a red string, red because all species of the Little Folk strongly dislike that color. It’s no coincidence that Iron Pixies take great joy at turning valuable tools red.

The following are few references regarding silica and construction dust: Silica-Safe.org Center for Disease Control. Makes you want to wear a respirator in bed.

The legal team hard at work digging up dirt

YMHOS

Links to Other Posts in the “Sharpening” Series

Sharpening Japanese Woodworking Tools Part 1

Sharpening Part 2 – The Journey

Sharpening Part 3 – Philosophy

Sharpening Part 4 – ‘Nando and the Sword Sharpener

Sharpening Part 5 – The Sharp Edge

Sharpening Part 6 – The Mystery of Steel

Sharpening Part 7 – The Alchemy of Hard Steel 鋼

Sharpening Part 8 – Soft Iron 地金

Sharpening Part 9 – Hard Steel & Soft Iron 鍛接

Sharpening Part 10 – The Ura 浦

Sharpening Part 11 – Supernatural Bevel Angles

Sharpening Part 12 – Skewampus Blades, Curved Cutting Edges, and Monkeyshines

Sharpening Part 13 – Nitty Gritty

Sharpening Part 14 – Natural Sharpening Stones

Sharpening Part 15 – The Most Important Stone

Sharpening Part 16 – Pixie Dust

Sharpening Part 17 – Gear

Sharpening Part 18 – The Nagura Stone

Sharpening Part 19 – Maintaining Sharpening Stones

Sharpening Part 20 – Flattening and Polishing the Ura

Sharpening Part 21 – The Bulging Bevel

Sharpening Part 22 – The Double-bevel Blues

Sharpening Part 23 – Stance & Grip

Sharpening Part 24 – Sharpening Direction

Sharpening Part 25 – Short Strokes

Sharpening Part 26 – The Taming of the Skew

Sharpening Part 27 – The Entire Face

Sharpening Part 28 – The Minuscule Burr

Sharpening Part 29 – An Example

If you have questions or would like to learn more about our tools, please use the questions form located immediately below. Please share your insights and comments with everyone in the form located further below labeled “Leave a Reply.” We aren’t evil Google or incompetent facebook and so won’t sell, share, or profitably “misplace” your information.

Sharpening Part 15 – The Most Important Stone

Orders are nobody can see the Great Oz! Not nobody, not nohow!

Gatekeeper, Emerald City

Many people high-center on the question: “What is the best way to sharpen my tools?”

I was hesitant to publish this series of posts about sharpening because, beginning with this post, I must answer this question by writing about tools and techniques that contradict many people’s sharpening religion. Some of those people will doubtless become emotional. As Benny Franklin once famously said: Ça ira, ça ira.

The objective of this post is to help our Beloved Customers properly maintain, sharpen and use the blades they purchase from us. Nothing else.

This post will not be a sharpening tutorial; that will be a future post.

We will examine the process of sharpening woodworking tools using mostly waterstones. We will touch on the motivations, goals and priorities related to sharpening you should consider, the minimum set of sharpening stones I recommend, and my suggestion for the most important stone in your arsenal, one you must be proficient in using.

Motivations

The Great and Powerful Oz has spoken!

You might have noticed from my previous posts that I like to understand motivations. Am I cynical? Perhaps, but where there are smoke and lights presented and money to be made, there is almost always someone behind the curtains spinning dials and pumping pedals. Oooh, pretty lights!

Anyone who does anything has a motive for doing it, and knowing that motive can help us evaluate the validity, and sometimes even the honesty, of what they do, say and write on a particular subject. How can we best ascertain the motivations of those advocating various sharpening methods and related accoutrements? Here are some simple questions you might want to ask: Are the promotions or promoters touting sharpening stones or other stuff they might profit from? Are they selling books on sharpening? Do they teach classes on sharpening? Do they have “sponsors” or “patrons” that supply them, at no cost or with large discounts, stones, diamond paste, sandpaper, sharpening machinery, and/or honing contraptions in exchange for promoting those goods? Are they “influencers” (yes, that’s a real vocation in the YouTube World) who are compensated for clicks? Do they publish reviews on products they receive for free? You see the pattern.

Regardless of their business model or motivations, many people give good advice. But some are shills, while some others are pretenders, and their advice will be colored accordingly. Caveat emptor, baby.

And then there is the most obvious motivation. After all, it doesn’t cost even $20 to make a Mechaultrasuperfine Ninja-purple Gold-dust-infused Musashi Walk-on-Waterstone that retails for $650. And have you calculated the long-term equivalent cost of diamond paste and abrasive films? Somebody’s making serious cash.

Just once I’d like to cross the road without having my motives questioned…

Whatever stones you select, I urge you to find a good balance of performance vs cost vs time vs sustainability, with sustainability referring to both the amount of landfill-stuffing the selected process creates as well as its long-term effect for good or ill on your blades. This 4-variable calculus depends not only on the characteristics of the stones and blades you use, but on your sharpening skills too, so it may take years to find the inflection points if you take a scientific approach. The quadratic formula does not yield useful results, sorry to say.

At one time or another I have tried and tested many popular sharpening “systems” including those that rely on jigs, machinery, sandpaper, plastic films, stick, liquid, paste, and powdered abrasives, buffers, strops and even superflat ceramic plates. I enjoy learning new things. They all get the job done, and all have serious merits, but to reduce the time and brain damage involved in this calculus, a wise man will learn from professionals, people who have been down the road before and actually use tools to feed their families, and who have no conflict of interest, be it stones, books, or clicks. That’s what I finally did, and I think it worked out well. But I need to issue a disclaimer before we go further.

Disclaimer

Here it is in red letters.

I say what I believe and believe what I say, even if it offends the “gurus” of sharpening. I buy their books and DVDs, watch their YouTube videos, and try the sharpening techniques and even the “tricks” they recommend, so I like to think I am not a “frog in a well,” as the Japanese saying goes. If I don’t know something, I will say so. I am not a child to be offended if you disagree with me, but I ask you to not become orcish.

Please note that we do not now and have never received goods, discounts, or financial compensation of any kind from anyone in exchange for modifying our opinion about sharpening tools and techniques.

I have personally taught many people how to sharpen tools over the years, but have never received a red cent for my time and haven’t used those training sessions as an excuse to sell stuff.

I have never done a product review.

I have never written a book or magazine article or even a blog post with advertiser support.

Please note that the document you are currently reading cost you nothing, was written and paid for by C&S Tools alone, and that there are no banners, commercials, or outside links on any of the pages in this blog. No SEO strategy at all. If Evil Google brought you here, it was not at our bidding.

We want to help our Beloved Customers, mostly professional woodworkers who already possess a certain level of skill, to level-up those skills. C&S Tools has no commercial incentive to mislead, and will not do so. But we do have a profit motive.

Remember, we have a 100% guarantee on the materials and workmanship of the tools we sell, so our sole financial motivation, and the very reason for this blog, is to help our Beloved Customers understand the tools we sell, and to become proficient in sharpening, maintaining, and using them so they won’t mistake a lack of skill and/or experience on their part as a problem with the tool. All most professionals really need is a little guidance. We want ecstatic customers because they become repeat customers. And we do hate to disappoint.

Goals, Objectives and Priorities

I mentioned 4 variable calculus above. Actually, it’s more like 5 variable calculus, the fifth variable being your goals and objectives for sharpening. Let’s examine those in more detail.

If satisfying curiosity are among your goals, then by all means try all the stones, sandpaper, films, pastes, jigs, contraptions, and machines available and methodically test them until they turn to dust. It simplifies the calculus, but the cost and time required to reach a final conclusion may become a heavy burden.

If beautiful blades, zen-like sharpening experiences, and improved hand-soul coordination are high among your ojectives (they’re included in mine), then you will want to try natural finishing stones. I heartily recommend them to those who have reached a certain level of skill with synthetic stones and are willing to roll the bones.

The performance of the sharpening system you select, including the following factors, is something should include in your calculations:

  • Time efficiency: How long does it take you to produce an adequately sharp edge starting from a dull/chipped one? How fiddly is the process? For this calculation you will need to determine how much your time is worth. Remember, while you may enjoy sharpening, from the professional’s viewpoint, time spent sharpening is non-productive time because, during the period you are working on tools, your hands, eyes, and mind cannot work on the stuff you contracted to deliver to the Customer;
  • Cost efficiency: How many billable hours and expensive supplies/tools/equipment must you expend to obtain an adequate cutting edge? For this calculation you will need to determine the cost of time, consumables (stones, sandpaper, film, paste, powder, beer) and equipment (grinders, jigs, plates, widgets, etc.) expended in producing an adequate cutting edge long-term. Even if you are not getting paid for your woodworking, your time still has value. And don’t forget to depreciate the cost of stuff. This is where synthetic waterstones shine in comparison to the many other sharpening systems out there.
  • Cutting efficiency: How well and how long does the sharpened blade cut? For this calculation, you need to determine what an “adequate cutting edge” is for you. For instance, given the same abrasives and expending the same amount of time to sharpen two blades, the blade with a rounded bevel, or even multiple bevels, is seldom as sharp as the blade with a simple flat bevel, as can be readily confirmed using a powerful loupe or microscope to examine the last few microns of the blade’s effective cutting edge (more on this subject in Part 21 of this series). Does the sharpening system you are testing tolerate or even promote bulging bevels or multiple bevels? Get out your loupe before your inner troll makes you say things you will regret.

If curiosity, pleasure and beauty are lower priority than practical performance in your list of objectives, then I suggest you focus on synthetic waterstones and the bedrock basics, at least for now:

  1. Obtain a minimum set of basic synthetic stones, or adapt what you already have;
  2. Learn how to use them skillfully;
  3. Practice those skills until they seep into your bones.

It is not an expensive process, but neither is it the instant short-term sort of thing the Gurus of Sharpening offer in their books and DVDs and classes through their tricks and gimmicks. It takes real skills that will serve you and your tools well for your entire life. And it all starts with the minimum set of stones.

The Goldilocks Set

Related image
Oh my goodness, just look at the time! I really must be going.

Sharpening stones are expensive consumables that disappear a little with every stroke. If you need more than 5 minutes to sharpen a plane or chisel blade that was not chipped or damaged, then you may be spending too long, and wasting your time and stones, so it’s important to determine the bare minimum set of stones that work best for you.

The Goldilocks set I recommend includes the following 4~5 stones/plates:

  1. A Rough Stone: 400~800 grit rough diamond plate or two carborundum stones;
  2. Medium Stones: Two 1,000 grit waterstones (I will get into the reasons for having two stones of the same grit in another post);
  3. A Finish Stone: 6,000~8,000 grit waterstone.

Please also note that I don’t take 10,000+ grit synthetic finishing stones or natural fine-finishing stones to jobsites. This decision is based on simple practical experience: Jobsites are rough and dirty places, and stones are fragile.

But there is an even more important reason: Airborne dust at jobsites will instantly degrade an expensive 10,000 grit rated stone to an effective 4,000 grit or less in an instant, making ultra-fine grit stones pointless. Dust will be the subject of the next post in this series.

The sharpening stones I normally use in the shop include a few beyond the minimum set described above. This set includes more stones, but the idea is that this finer gradation creates a better-quality cutting edge while consuming less of my expensive finishing stones. Natural stones can be pricey:

The packaging is fancier, but the content’s the same.
  1. One 400~800# diamond plate or two rough carborundum stones (only occasionally necessary);
  2. Two 1000# Imanishi waterstones (Bester brand) (usually necessary, but sometimes I skip it);
  3. Two 2000# Bester waterstones;
  4. One 6000# stone (fine enough for quickly finishing chisels and most planes);
  5. Two natural stones for finish planes and push chisels, or just for fun (a 10,000# synthetic stone works just as well).

Which Brand of Synthetic Stone?

I don’t think there is a dime’s worth of difference between the various synthetic stone manufacturers except for their marketing and distribution. I use what works for me and is available locally at the cheapest price. We don’t sell stones and have no relationship with or loyalty to any manufacturer.

Regardless of manufacturer, I do recommend you avoid the extra-thick variety of synthetic stone because the oven’s heat sometimes does not penetrate deep enough leaving the interior too soft.

The Most Important Stone

Everyone focuses like a laser on the finishing stone, the final stone in the process, but when sharpening a particular blade, the most important stone is really the first stone you use in the series, be it a 400 grit diamond plate or a 2,000 grit waterstone.

You may find this whole discussion passing strange, so I will explain. The roughest stone (or diamond plate, depending on the amount of steel that must be wasted and your available time and budget) you begin the sharpening process with builds the foundation of your cutting edge by performing the following two critical tasks:

  1. Removing damage at the cutting edge; and
  2. Shaping/flattening the cutting bevel.

Only a rough stone (400~800 grit) can accomplish the first task efficiently. If the truth of this statement is not self-evident, I won’t even try to convince you. Do the comparisons yourself: count strokes, time, and cost, measure angles, and peep at scratches through a high-power loupe.

In addition, your roughest stone or diamond plate is also the most efficient tool for shaping the bevel and cutting edge, if it needs to be adjusted. Until these two critical tasks are completed, none of the subsequent finer stones can accomplish anything efficiently, and the faster and more precisely these two tasks are accomplished the sooner one can stop sharpening and get back to the real job of woodworking.

The role of the finer stones in the sharpening sequence is simply to replace the deeper scratches left by the preceding rougher stone with progressively finer scratches. And since this work is done using more expensive, less-abrasive and slower-working stones, it is most cost/time-efficient to accomplish this task as quickly as possible. If you knock out the two foundational tasks listed above using your rough stone/plate well, then you can accomplish the subsequent polishing work at minimum cost and maximum speed. Screw it up and your blades will hate you.

Please be sure you understand the meaning of the previous 4 paragraphs. They are the heart of this article

So how does this work in real life? If the blade is chipped, dinged, or needs shaping, then I start repairing and reshaping the cutting edge’s foundation with my diamond plate. A carborundum stone, if very flat and kept flat, will work too. If my blade is only dull, but not damaged, and the bevel is in good shape, I start with a flat 1,000 grit stone. If the blade is starting to lose its edge, but is not damaged and still cuts, I start the process with a flat 2,000 grit stone. Notice the word “flat” is used a lot in this paragraph.

The objective, again, is to create an adequately sharp edge in the minimum amount of time and cost by starting the sharpening process with the cheapest, most aggressive stone appropriate to the blade’s condition for the heavy wasting and shaping thereby creating a bevel and cutting edge which you can then quickly polish to the final cutting edge using the more expensive, finer-grit stones. Wow, that’s a mouthful!

I want to make one thing perfectly clear before ending this post. Except for a few special situations, I don’t recommend using secondary bevels or micro-bevels except in special circumstances because, like training wheels on a bicycle, they are not an efficient long-term solution. In fact, they are a short-cut that has stunted many people’s sharpening skills. We will return to this subject later.

YMHOS

This image has an empty alt attribute; its file name is tenor.gif
The Marketing Department

Links to Other Posts in the “Sharpening” Series

Sharpening Japanese Woodworking Tools Part 1

Sharpening Part 2 – The Journey

Sharpening Part 3 – Philosophy

Sharpening Part 4 – ‘Nando and the Sword Sharpener

Sharpening Part 5 – The Sharp Edge

Sharpening Part 6 – The Mystery of Steel

Sharpening Part 7 – The Alchemy of Hard Steel 鋼

Sharpening Part 8 – Soft Iron 地金

Sharpening Part 9 – Hard Steel & Soft Iron 鍛接

Sharpening Part 10 – The Ura 浦

Sharpening Part 11 – Supernatural Bevel Angles

Sharpening Part 12 – Skewampus Blades, Curved Cutting Edges, and Monkeyshines

Sharpening Part 13 – Nitty Gritty

Sharpening Part 14 – Natural Sharpening Stones

Sharpening Part 15 – The Most Important Stone

Sharpening Part 16 – Pixie Dust

Sharpening Part 17 – Gear

Sharpening Part 18 – The Nagura Stone

Sharpening Part 19 – Maintaining Sharpening Stones

Sharpening Part 20 – Flattening and Polishing the Ura

Sharpening Part 21 – The Bulging Bevel

Sharpening Part 22 – The Double-bevel Blues

Sharpening Part 23 – Stance & Grip

Sharpening Part 24 – Sharpening Direction

Sharpening Part 25 – Short Strokes

Sharpening Part 26 – The Taming of the Skew

Sharpening Part 27 – The Entire Face

Sharpening Part 28 – The Minuscule Burr

Sharpening Part 29 – An Example

If you have private questions or would like to learn more about our tools, please use the questions form located immediately below. Please share your insights and comments with everyone in the form located further below labeled “Leave a Reply.” Your information will remain confidential (we’re not evil Google or incompetent facebook).
